- compatible brand : XMX
- rechargeable : RECHARGABLE
- Type : Rechargeable Batteries
- use : Home Appliance, TELESCOPE, Tablet
- model number : 5025100
- brand name : XMX
- place of origin : Guangdong, China
- battery type : Lithium Battery Rechargeable
- color : White
- nominal voltage : 7.4v
- products status : Stock
Company introduction
Xinmengxing Technology is a high-tech enterprise. This is our third five-year period. We are constantly pursuing technological innovation, thinking innovation and quality innovation。we adheres to technological innovation, management innovation and R&D innovation as its foundation, constantly enhancing the competitiveness of its products
Product Description
|
item
|
Specification
|
|
Model
|
5025100
|
|
Battery Type
|
Lithium Polymer Li-Po
|
|
Cell Configuration
|
2S1P
|
|
Nominal Voltage
|
7.4V
|
|
Nominal Capacity
|
1500mAh
|
|
Rated Energy
|
11.1Wh
|
|
Voltage Range
|
6.0V – 8.4V
|
|
Standard Charge Voltage
|
8.4V CC/CV
|
|
Standard Charge Current
|
0.5C
|
|
Max Charge Current
|
1C customizable
|
|
Standard Discharge Current
|
0.5C
|
|
Max Continuous Discharge Current
|
1C–10C optional
|
|
Peak Discharge Current
|
Customizable
|
|
Internal Resistance
|
≤150mΩ pack level
|
|
Dimensions Typical
|
5.0mm × 25mm × 100mm
|
|
Weight
|
Approx. 35–45g
|
|
Pack Structure
|
Soft polymer pouch pack
|
|
Connector
|
JST/Molex/XH/PH/SM customizable
|
|
Wire Type
|
UL-certified wire, custom length
|
|
Protection Optional
|
Over-charge, over-discharge, over-current, short-circuit
|
|
Operating Temp. Charge
|
0°C ~ 45°C
|
|
Operating Temp. Discharge
|
–20°C ~ 60°C
|
|
Storage Temp.
|
–20°C ~ 45°C short term, 0°C ~ 25°C long term
|
|
Cycle Life
|
≥300 cycles ≥80% remaining capacity
|
|
Self-Discharge
|
≤3% per month
|
|
Customization
|
Capacity, size, connector, wire, PCM/BMS, C-rate
|
Key Advantages:
ISO9001 /3C Certified Factory
✅ UN38.3 / MSDS / CE / RoHS/UL/KC certificated
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ UN38.3 / MSDS / CE / RoHS/UL/KC certificated
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ Can customized per your detail request
Our custom lithium ion battery packs are designed for solar energy storage, e-bikes, and industrial applications. Each pack uses
high-quality 21700 or 18650 cells with smart BMS protection.
high-quality 21700 or 18650 cells with smart BMS protection.

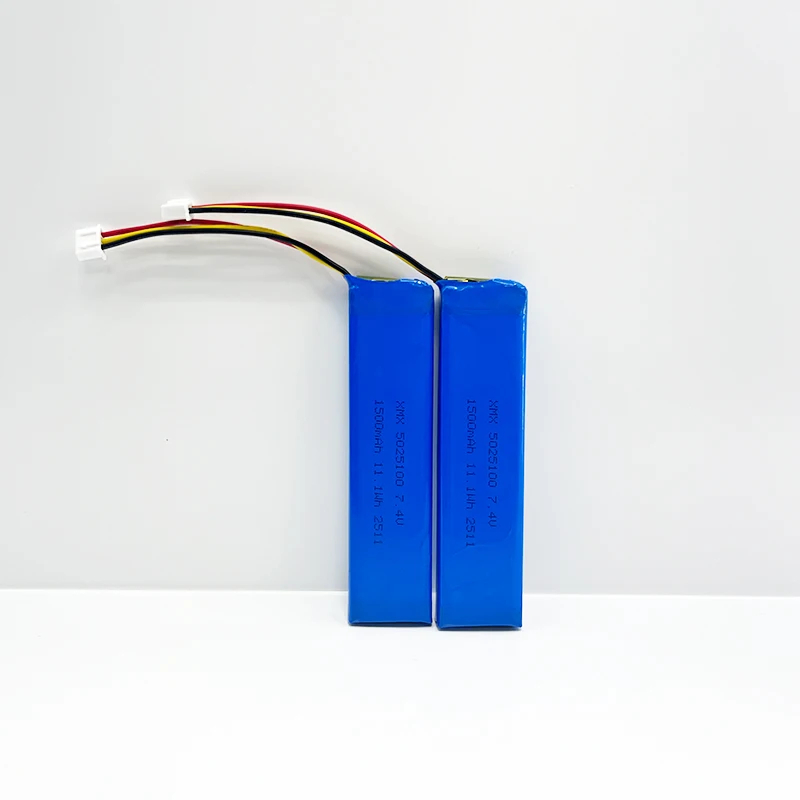

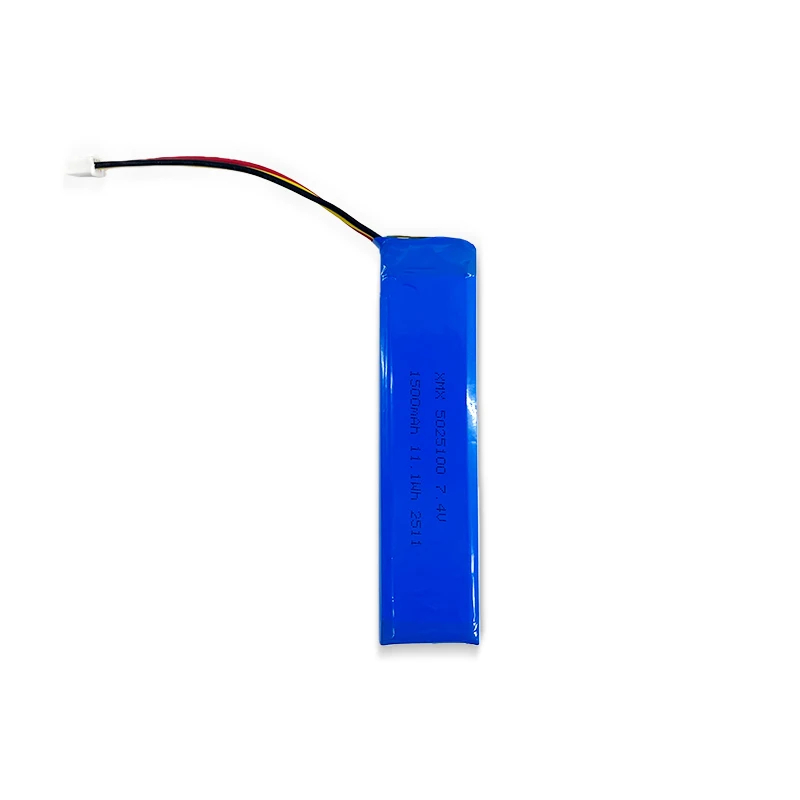

Detailed Images

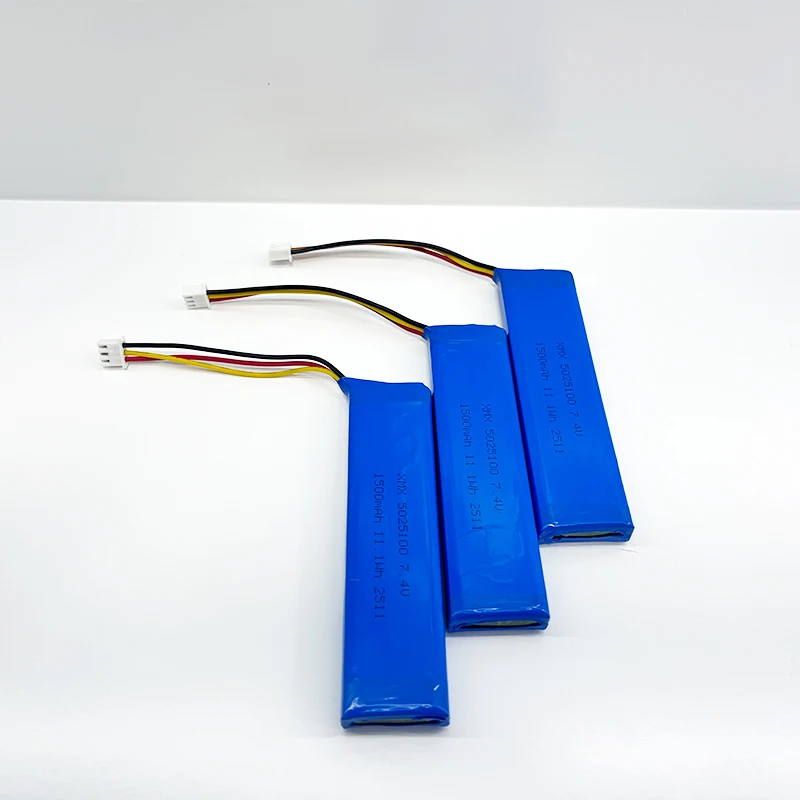

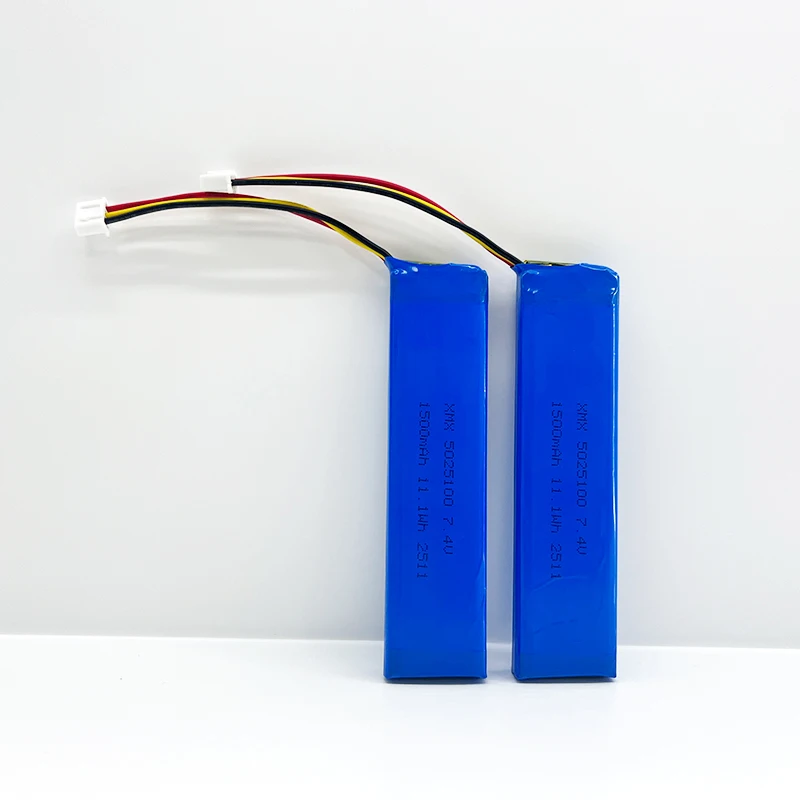

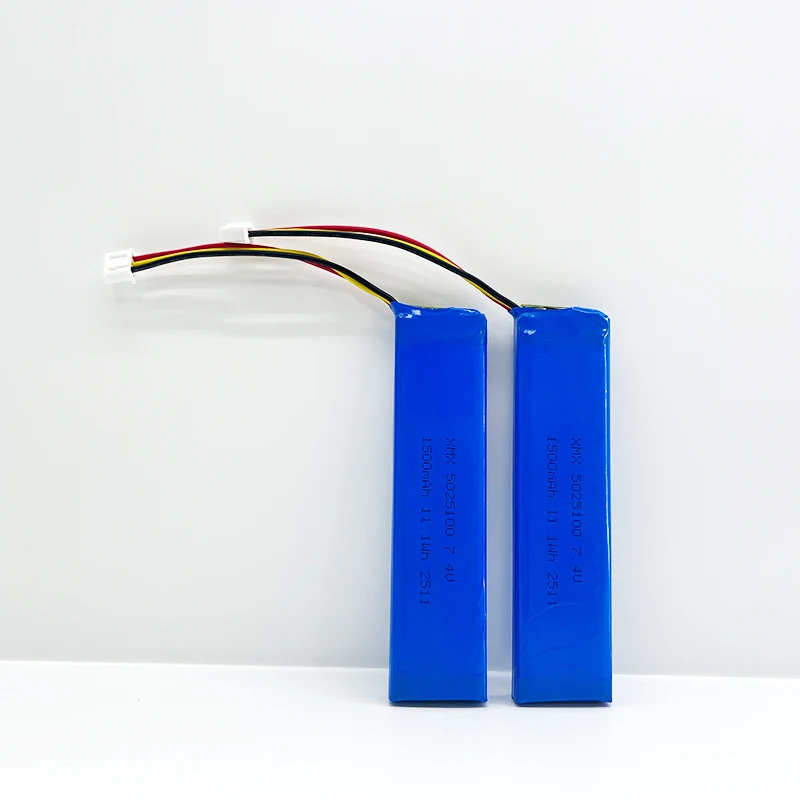

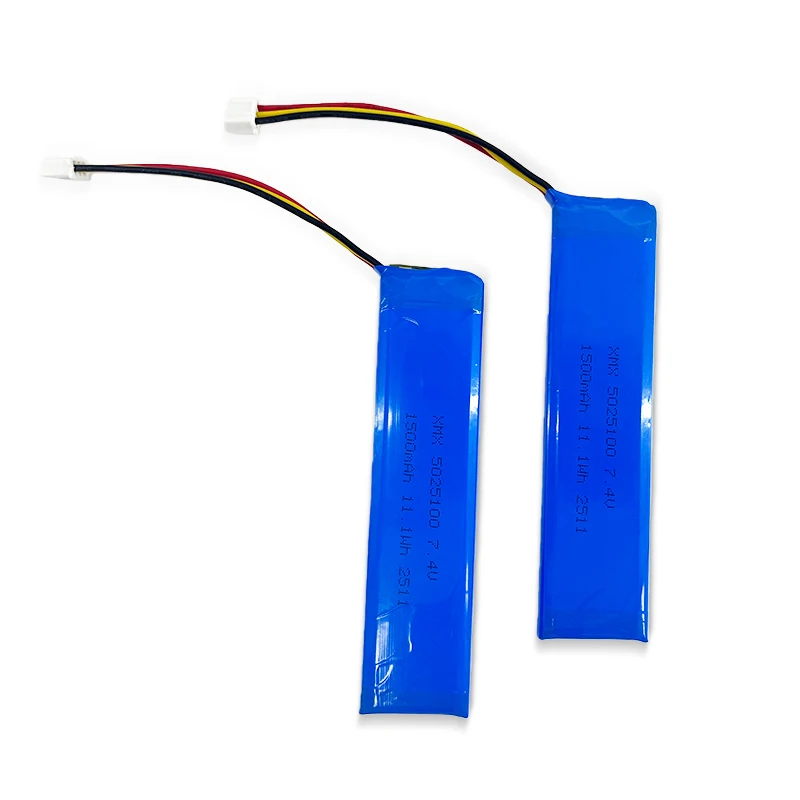

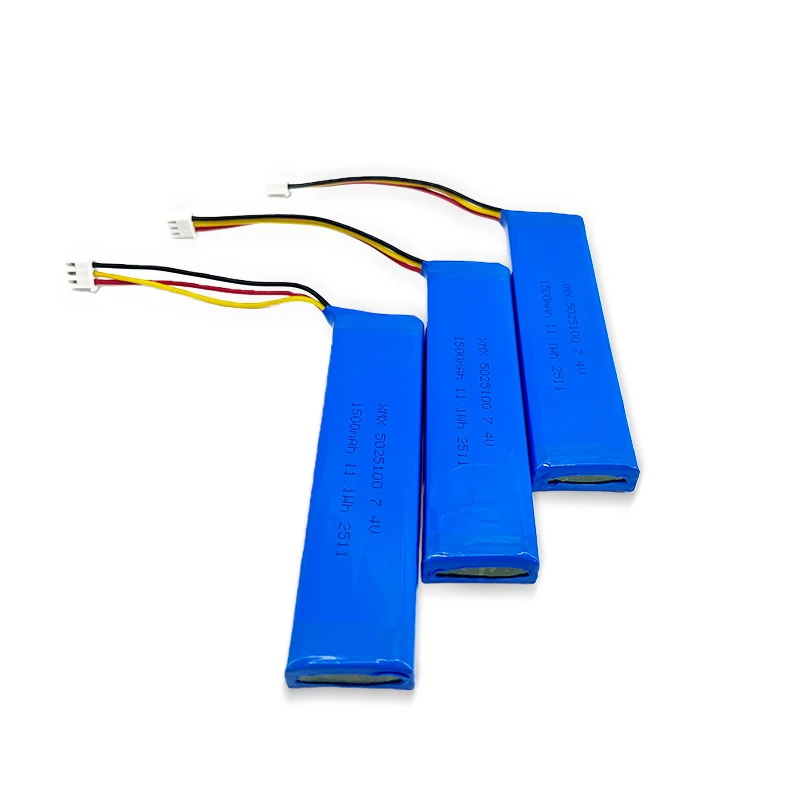

Product detail drawing
产品细节图 +产品细节介绍
Basic Information
* Model: 5025100
* Battery Type: Lithium Polymer Li-Po
* Cell Configuration: 2S1P
* Nominal Voltage: 7.4V
* Nominal Capacity: 1500mAh
* Rated Energy: 11.1Wh
* Model: 5025100
* Battery Type: Lithium Polymer Li-Po
* Cell Configuration: 2S1P
* Nominal Voltage: 7.4V
* Nominal Capacity: 1500mAh
* Rated Energy: 11.1Wh
Dimensions: 10.0mm × 25mm × 100mm Typical; customizable
Weight: Approx. 45g
Pack Structure: Soft polymer pouch pack
Connector: JST/Molex/XH/PH/SM or customized
Wire Gauge: UL-certified wires custom length available
Weight: Approx. 45g
Pack Structure: Soft polymer pouch pack
Connector: JST/Molex/XH/PH/SM or customized
Wire Gauge: UL-certified wires custom length available
Protection & Safety
* Over-charge protection
* Over-discharge protection
* Over-current / short-circuit protection
* Temperature protection optional
* Balanced charging optional for multi-cell packs
* Over-charge protection
* Over-discharge protection
* Over-current / short-circuit protection
* Temperature protection optional
* Balanced charging optional for multi-cell packs
Introduction of product advantages or application effect or application mode
产品优点or使用效果or使用方式的介绍说明
Exclusive design
Wide Application for Portable Devices
Stable 7.4V Power Supply
High Energy Density Li-Polymer Battery
Lightweight & Efficient Power Solution
Reliable Energy for Smart Electronics
Ideal for RC Models & Handheld Devices
Customizable for Various Applications
Power for Innovation
Designed for Compact Equipment
Smooth & Stable Power Output
Stable 7.4V Power Supply
High Energy Density Li-Polymer Battery
Lightweight & Efficient Power Solution
Reliable Energy for Smart Electronics
Ideal for RC Models & Handheld Devices
Customizable for Various Applications
Power for Innovation
Designed for Compact Equipment
Smooth & Stable Power Output
battery solution for your selection
Nominal Voltage: 7.4 V 2S series
Capacity: 1600 mAh
Battery Type: Lithium Polymer Li-Po rechargeable
Configuration: 2S1P soft pack / battery pack
Ideal For: RC cars, drones, portable electronics, medical devices, handheld instruments, wireless communication devices, and other
small-to-mid power gadgets
Features: Lightweight, high energy density, rechargeable, custom pack design possible
Capacity: 1600 mAh
Battery Type: Lithium Polymer Li-Po rechargeable
Configuration: 2S1P soft pack / battery pack
Ideal For: RC cars, drones, portable electronics, medical devices, handheld instruments, wireless communication devices, and other
small-to-mid power gadgets
Features: Lightweight, high energy density, rechargeable, custom pack design possible
Product Presentation
Product Overview

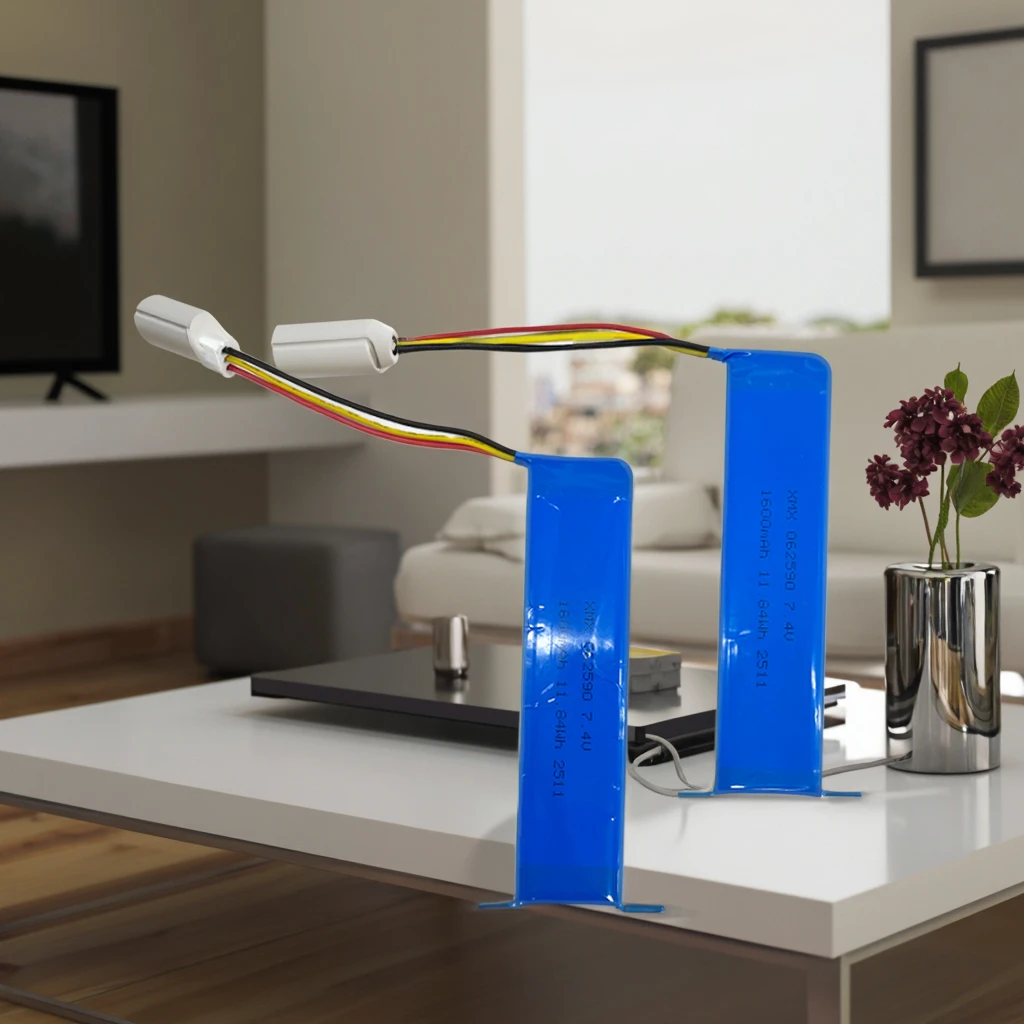

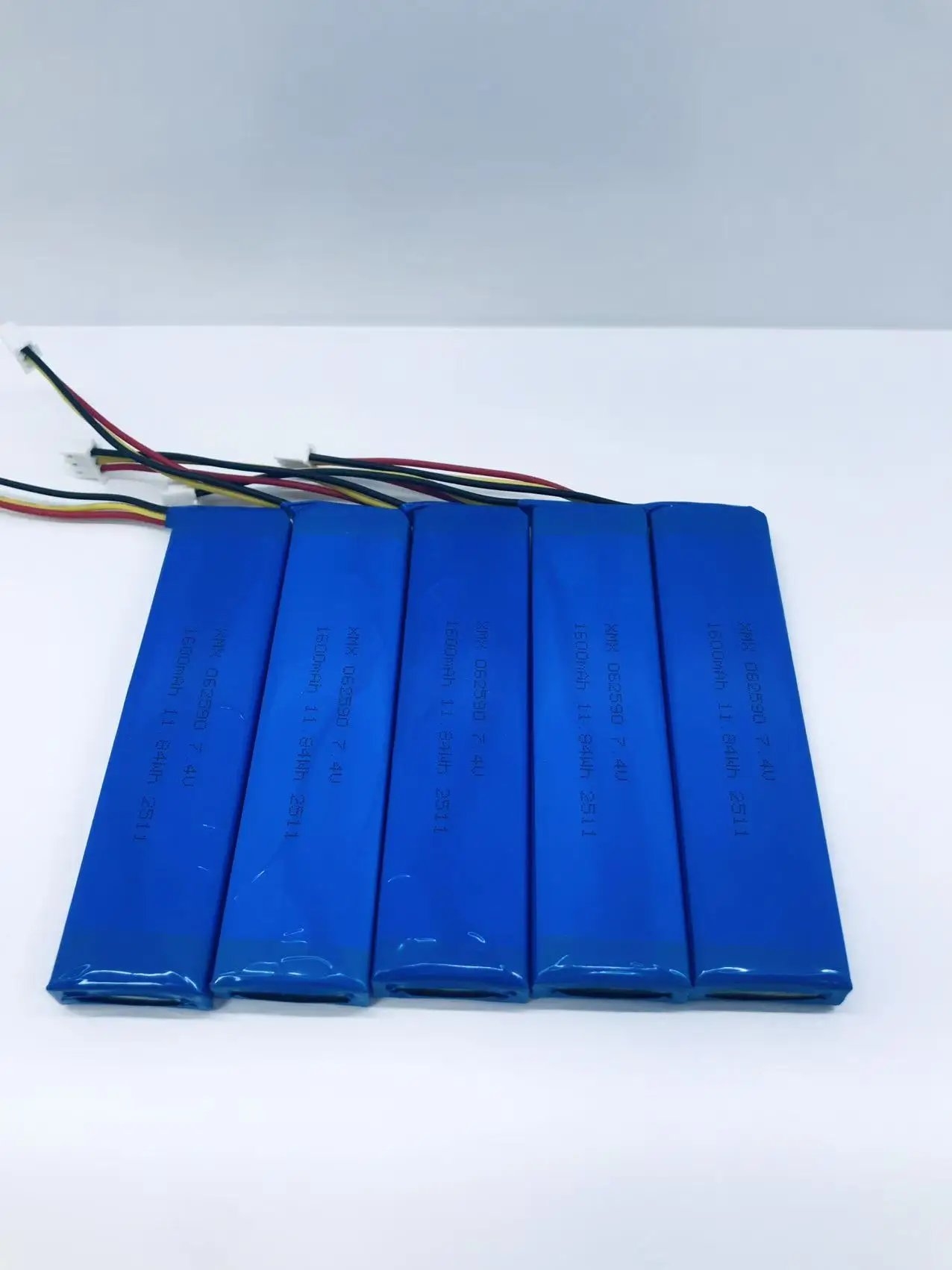

The 062590 2S1P 7.4V 1600mAh Lithium Polymer Battery is a lightweight and high-energy battery pack designed for portable devices and medium-power electronics. With stable discharge performance, high safety, and compact size, it is widely used in RC models,handheld instruments, communication devices, and customized smart equipment.
-
shipment package
Company Introduction
With over 10 years of experience in the lithium battery industry, we specialize in various polymer battery ,li-ion 18650 and 21700 cells and a wide range of customized battery packs.
Our products are widely used in lithium polymer battery, lipo battery, rechargeable li-polymer battery, 3.7V polymer battery, custom lithium battery, polymer
battery pack, high capacity lipo battery, battery for GPS tracker
Our products are widely used in lithium polymer battery, lipo battery, rechargeable li-polymer battery, 3.7V polymer battery, custom lithium battery, polymer
battery pack, high capacity lipo battery, battery for GPS tracker
Packing&Shipping
FAQ
Why Choose Us ?we give you qo reasons
1.10+ Years Battery Industry Experience
2.Direct Factory with Stable Quality & Supply
3.Strong R&D and Customization Capability
4.Wide Range: 18650 / 21700 / LiFePO4 / Polymer pack
5.Export Experience to 30+ Countries
3.Strong R&D and Customization Capability
4.Wide Range: 18650 / 21700 / LiFePO4 / Polymer pack
5.Export Experience to 30+ Countries
6.Professional battery manufacturer in Dongguan, China
7. OEM / ODM service, flexible design
8.Strict quality control and testing before shipment
9.Fast delivery and stable supply
10.Quick response — within 12 hours
7. OEM / ODM service, flexible design
8.Strict quality control and testing before shipment
9.Fast delivery and stable supply
10.Quick response — within 12 hours
