- compatible brand : XMX
- rechargeable : RECHARGABLE
- Type : Rechargeable Batteries
- use : Home Appliance, TELESCOPE, Tablet
- model number : 906090 2S1P
- brand name : XMX
- place of origin : Guangdong, China
- battery type : Lithium Battery Rechargeable
- color : White
- nominal voltage : 7.4v
- products status : Stock
Company introduction
Xinmengxing Technology is a high-tech enterprise. This is our third five-year period. We are constantly pursuing technological innovation, thinking innovation and quality innovation。we adheres to technological innovation, management innovation and R&D innovation as its foundation, constantly enhancing the competitiveness of its products
Product Description
|
item
|
Specification
|
|
Model
|
906090 Li-polymer Battery
|
|
Configuration
|
2S1P 2 cells in series
|
|
Nominal Voltage
|
7.4V
|
|
Nominal Capacity
|
6000mAh
|
|
Energy
|
44.4Wh
|
|
Charge Cut-off Voltage
|
8.4V
|
|
Discharge Cut-off Voltage
|
6.0V
|
|
Typical Internal Resistance
|
≤ 120mΩ
|
|
Standard Charge Current
|
0.5C 3.0A
|
|
Max Charge Current
|
1C 6.0A
|
|
Standard Discharge Current
|
0.5C 3.0A
|
|
Max Continuous Discharge Current
|
1C 6.0A customizable
|
|
Peak Discharge Current
|
2C 12A customizable
|
|
Cell Type
|
Li-polymer rechargeable
|
|
Dimensions W × L × T
|
9.0 × 60 × 90 mm
|
|
Weight
|
Approx. 240g depending on protection board
|
|
Protection Circuit PCM/BMS
|
Over-charge, over-discharge, over-current, short circuit
|
|
Cycle Life
|
≥ 500 cycles @ 0.5C discharge
|
|
Self-discharge
|
≤ 3% per month
|
|
Operating Temp. Charge
|
0°C to +45°C
|
|
Operating Temp. Discharge
|
-20°C to +60°C
|
|
Storage Temp.
|
-20°C to +45°C
|
|
Storage Humidity
|
≤ 75% RH
|
|
Certifications
|
UN38.3 / MSDS optional
|
|
Application
|
Medical devices, massage guns, scanners, industrial tools
|
|
Customization
|
Capacity, size, connector, wire, PCM/BMS, C-rate
|
Key Advantages:
ISO9001 /3C Certified Factory
✅ UN38.3 / MSDS / CE / RoHS/UL/KC certificated
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ UN38.3 / MSDS / CE / RoHS/UL/KC certificated
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ Can customized per your detail request
Our custom lithium ion battery packs are designed for solar energy storage, e-bikes, and industrial applications. Each pack uses
high-quality 21700 or 18650 cells with smart BMS protection.
high-quality 21700 or 18650 cells with smart BMS protection.

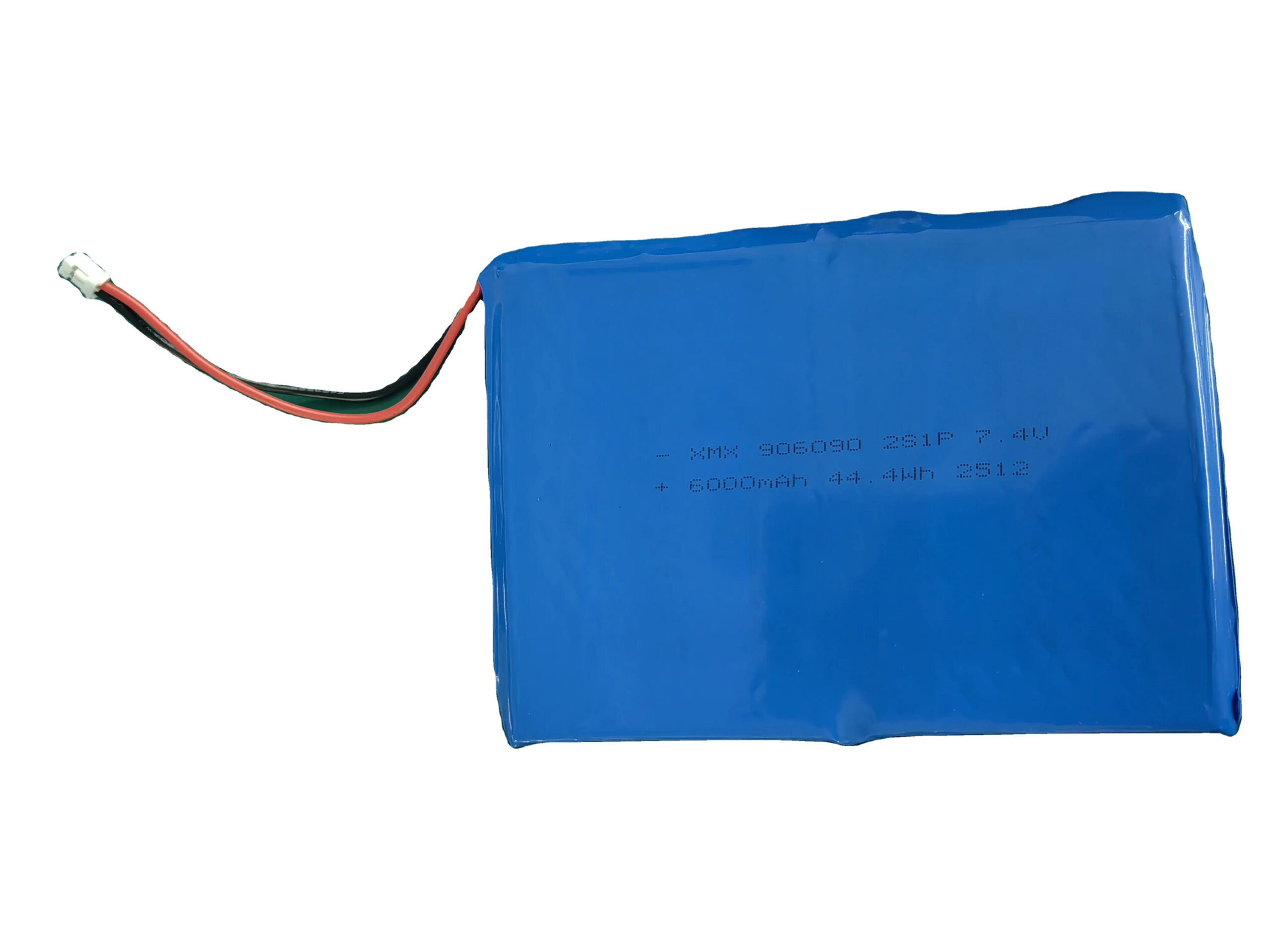

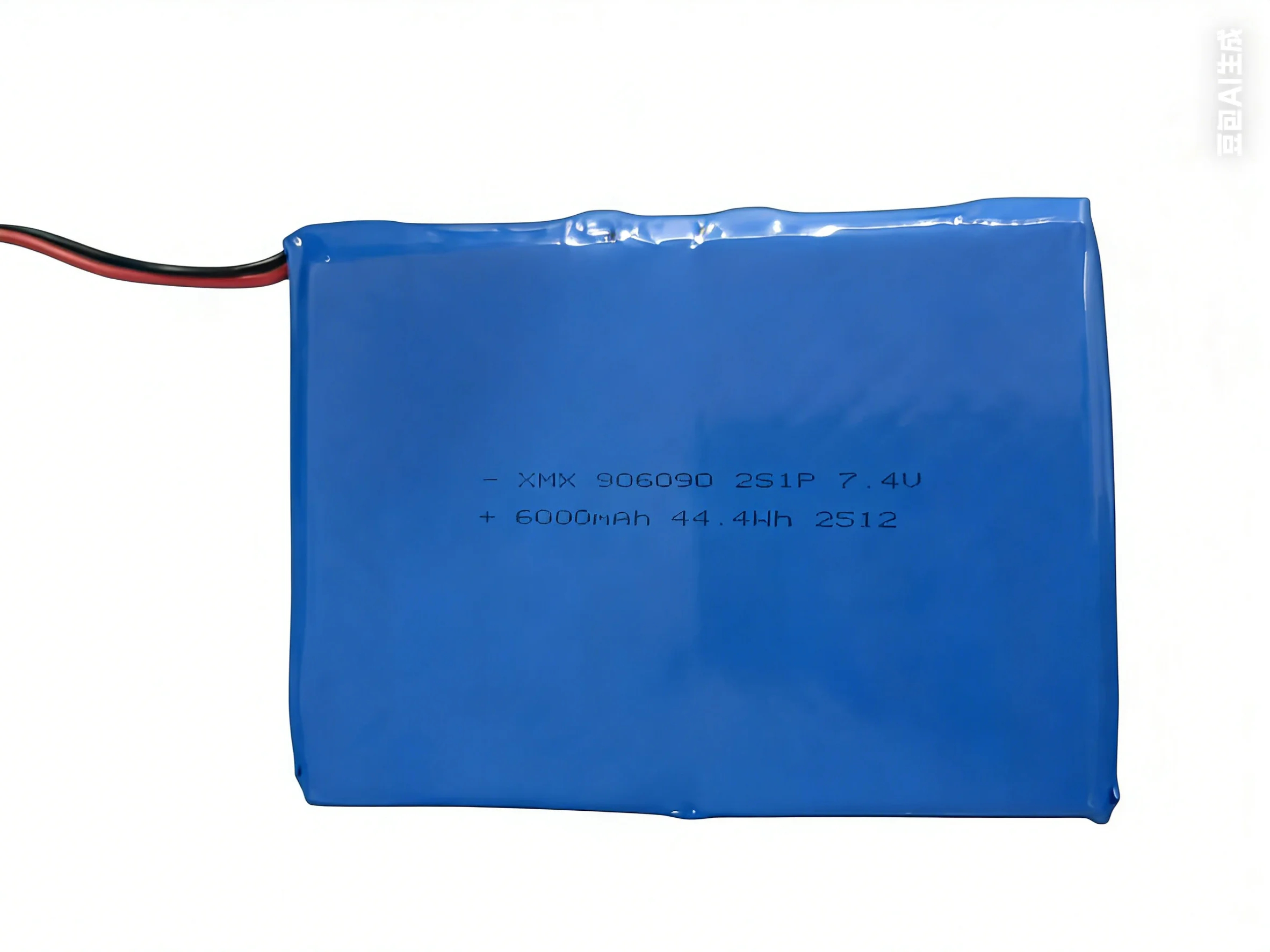

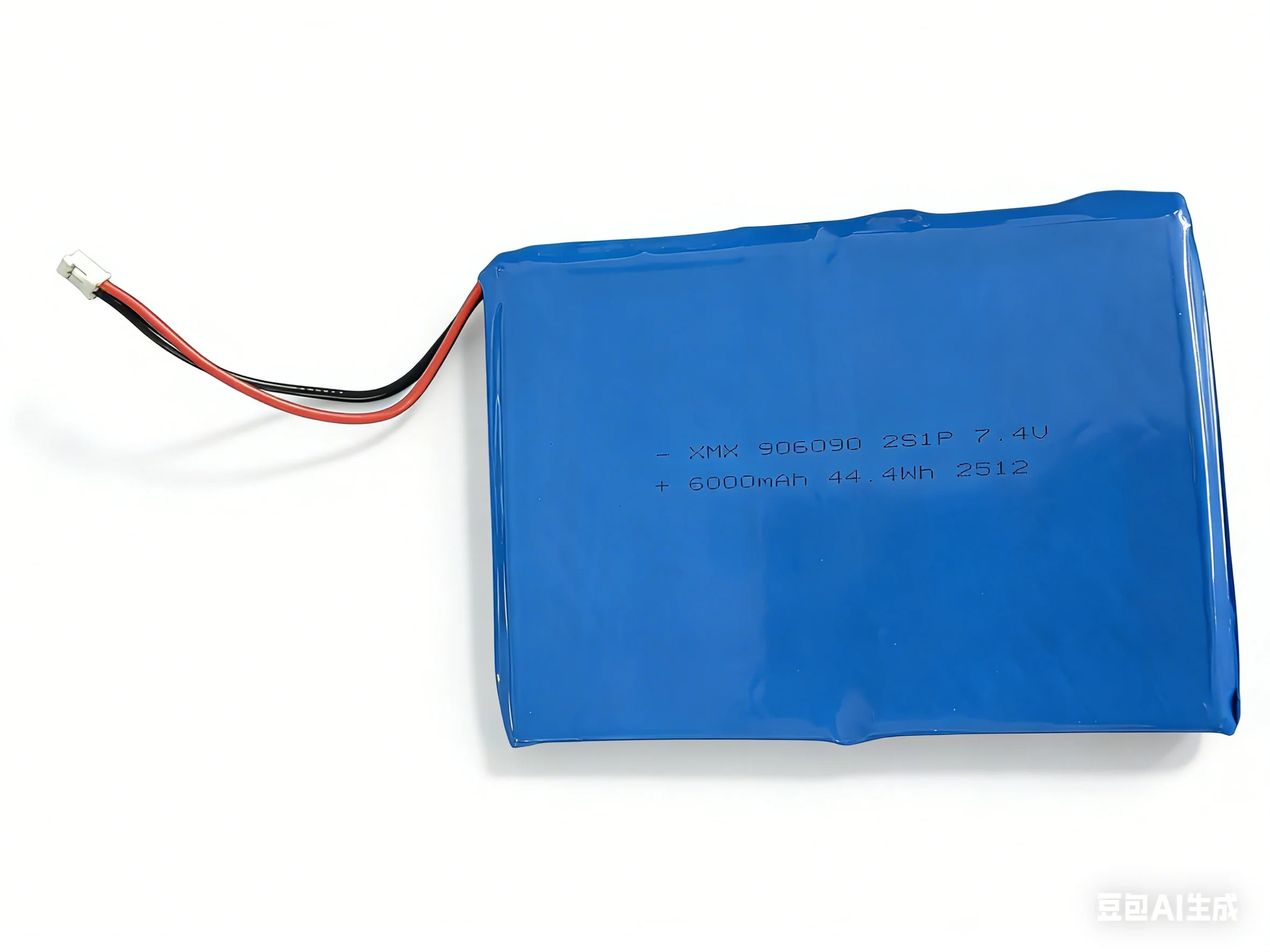

Detailed Images

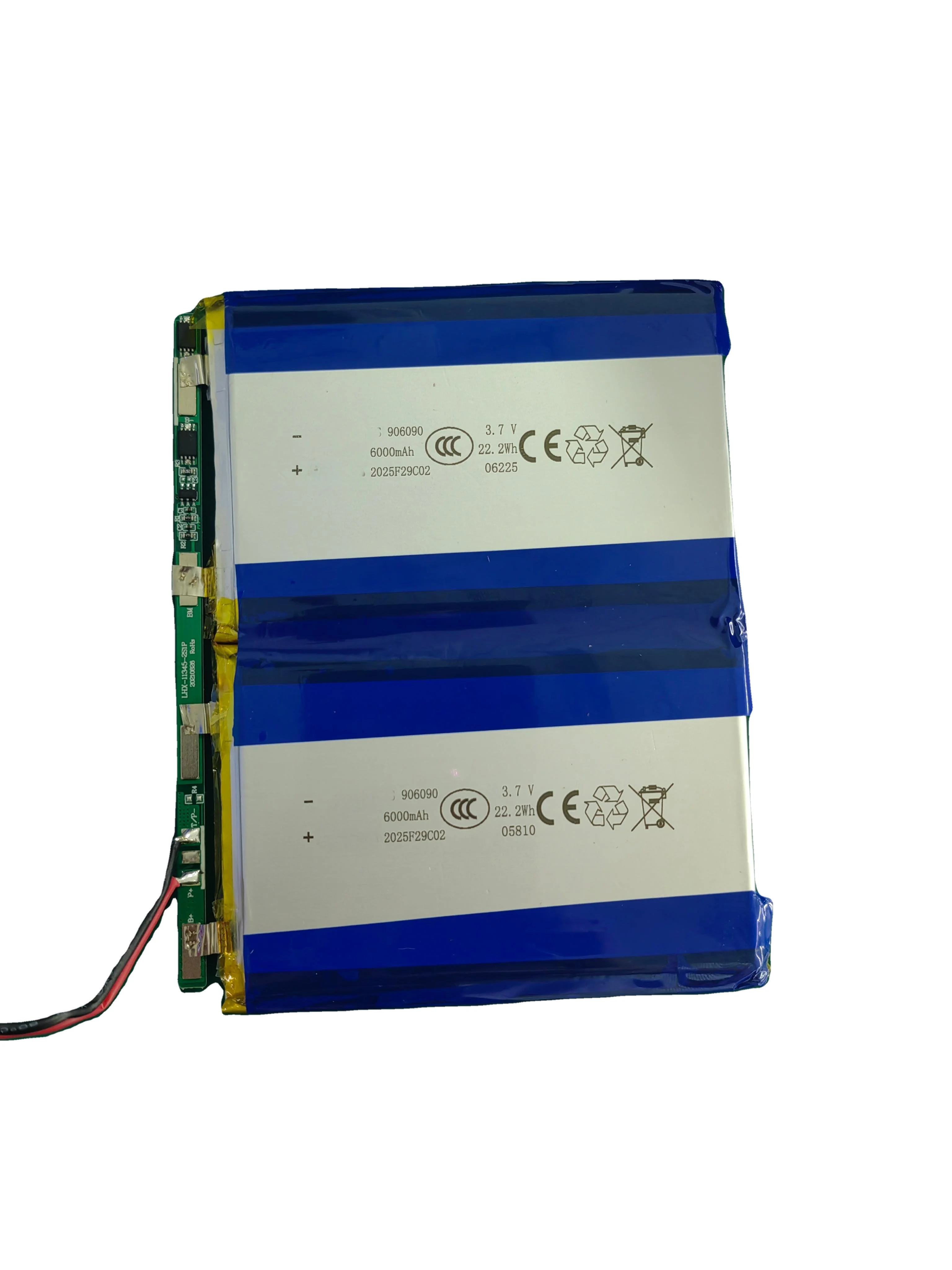

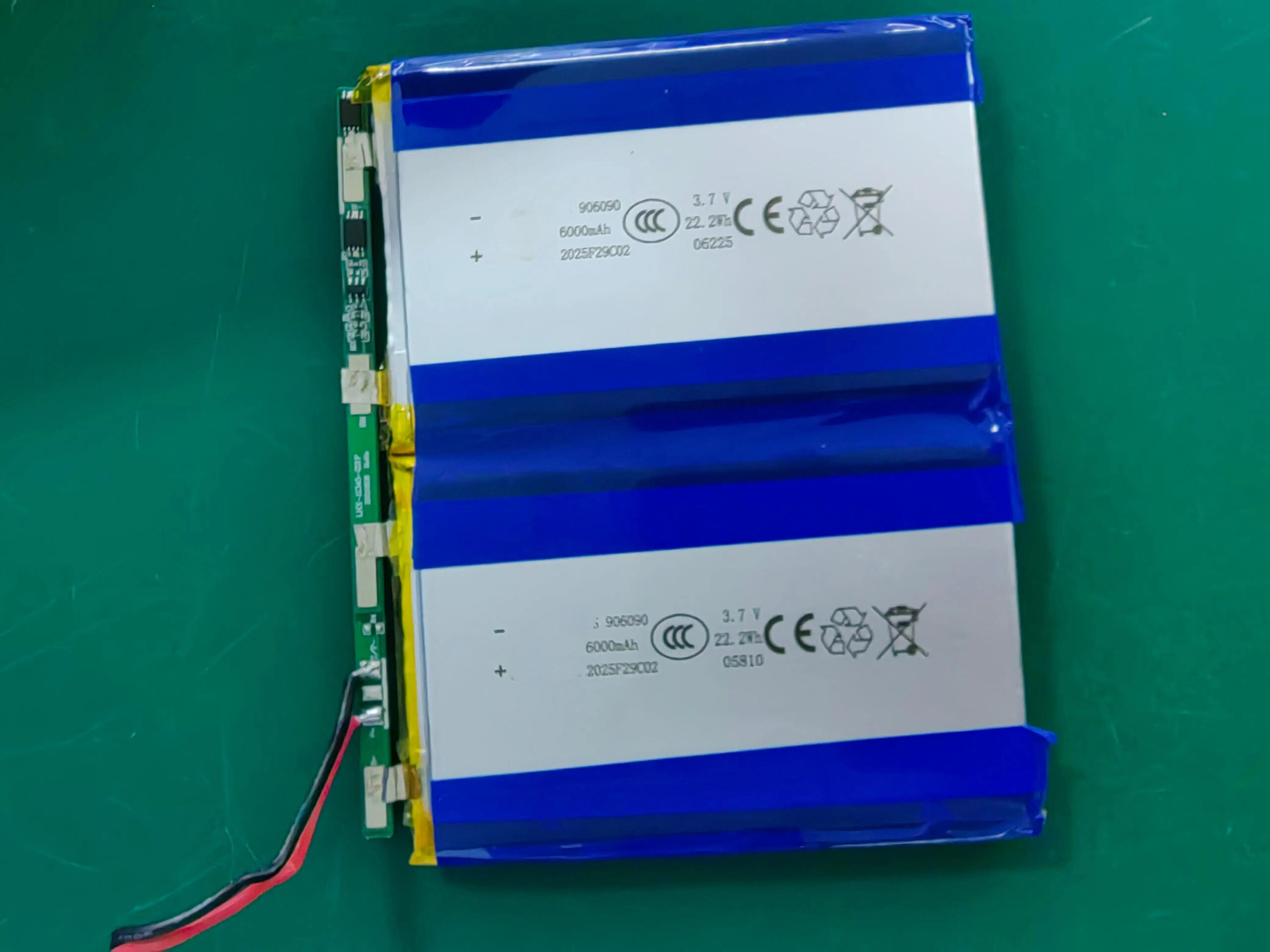

Product detail drawing
产品细节图 +产品细节介绍
uD83DuDD39 4 Designed for High-Power Motor Applications
Our discharge system specially optimized for:
* Massage gun motors
* High torque loads
* Continuous peak discharge
> Stable output without voltage drop — prevents shutdown during heavy load.
Our discharge system specially optimized for:
* Massage gun motors
* High torque loads
* Continuous peak discharge
> Stable output without voltage drop — prevents shutdown during heavy load.
True Customized Engineering Service
We customize:
* Wire harnesses
* Connectors JST/SM/Molex
* Voltage & capacity
* Mechanical size
* Special shape & heat dissipation
> One-stop battery customization = Saves buyer’s engineering time.
We customize:
* Wire harnesses
* Connectors JST/SM/Molex
* Voltage & capacity
* Mechanical size
* Special shape & heat dissipation
> One-stop battery customization = Saves buyer’s engineering time.
If you are looking for a stable, safe and customized Li-polymer battery for medical, industrial or handheld applications — we are
the right supplier. OEM/ODM projects welcome.”
the right supplier. OEM/ODM projects welcome.”
Introduction of product advantages or application effect or application mode
产品优点or使用效果or使用方式的介绍说明
Exclusive design
Wide Application Compatibility
Designed for high-value portable products:
* Massage guns & physiotherapy devices
Designed for high-value portable products:
* Massage guns & physiotherapy devices
* Medical detection/diagnostic instruments
* Industrial handheld terminals PDA/scanners
* Wireless monitoring systems
* Smart IoT equipment
* Imaging/LED lighting devices
battery solution for your selection
Strong Engineering Support
We provide full documentation & technical assistance:
* Battery selection guidance
We provide full documentation & technical assistance:
* Battery selection guidance
* PCM customization
* Connector matching
* Compatibility evaluation
* Sample validation

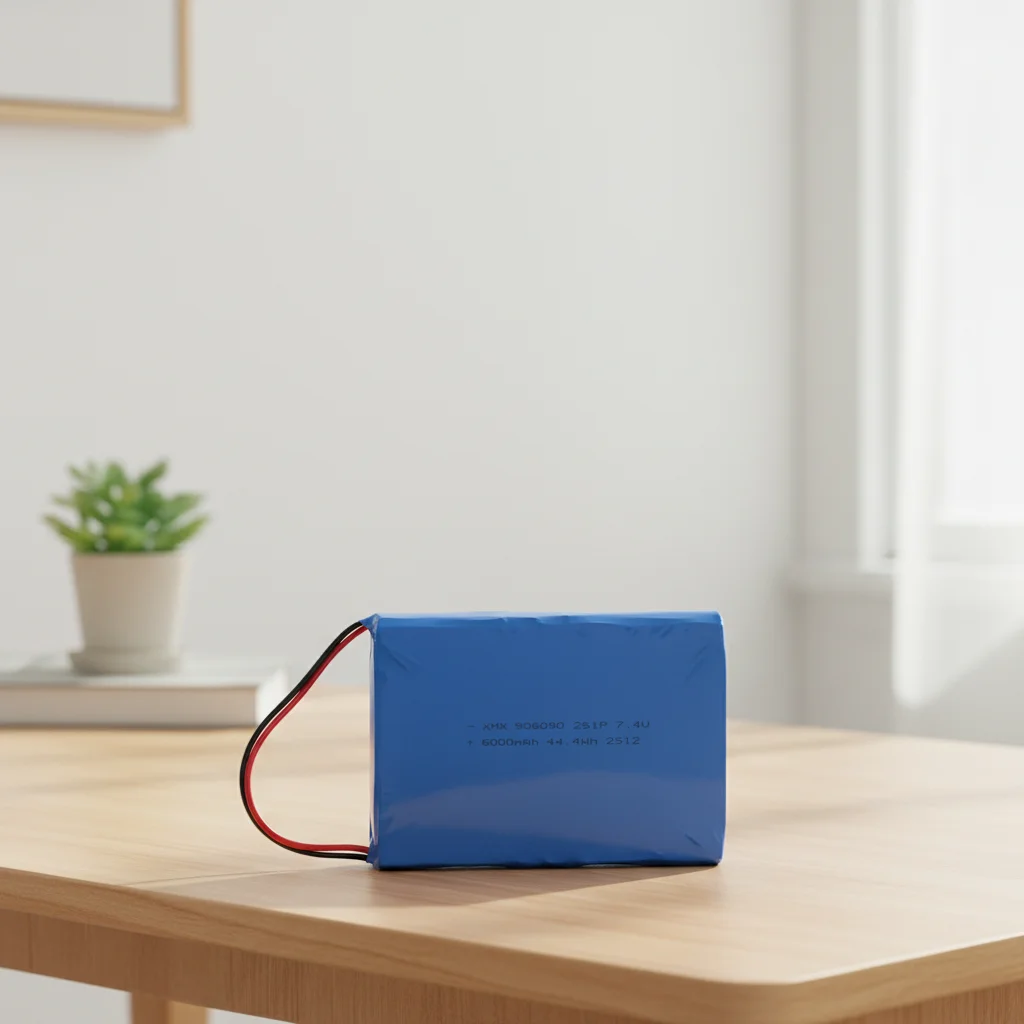

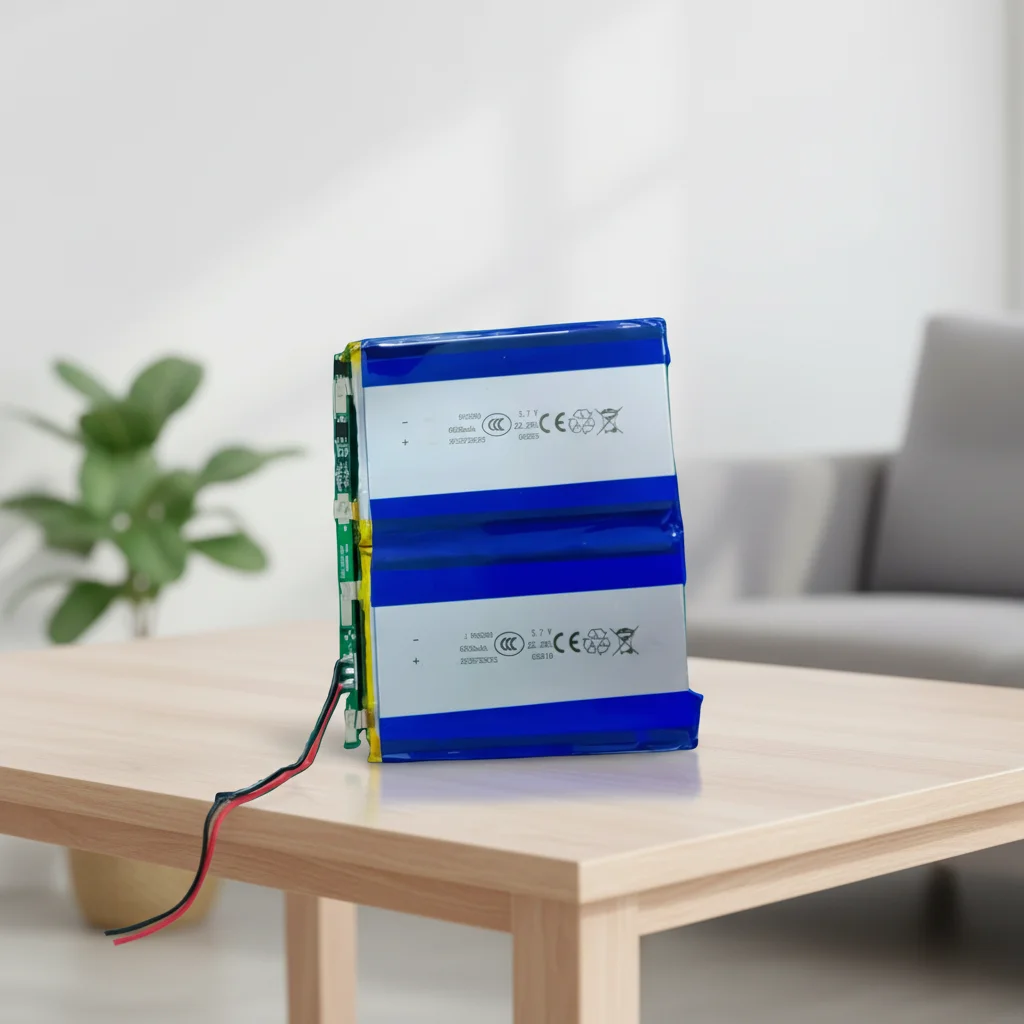

Product Presentation
High-energy 7.4V Li-polymer pack engineered for demanding portable systems, delivering excellent runtime, safe PCM protection, and superior discharge stability for motor-driven medical and industrial devices。
-
