- compatible brand : XMX Or oem
- rechargeable : RECHARGABLE
- Type : Standard Battery, Battery Pack, Rechargeable Batteries, POLYMER BATTERY
- use : Other, hand warmer walkie-talkie wireless charging lawn l, sensor light battery, mouse
- model number : 902030
- brand name : XMX
- place of origin : Guangdong, China
- battery type : Li-polymer
- color : Silver
- nominal voltage : 3.7v, can customized batterypack per customer request
- products status : Stock
Company introduction
Xinmengxing Technology is a high-tech enterprise. This is our third five-year period. We are constantly pursuing technological innovation, thinking innovation and quality innovation。we adheres to technological innovation, management innovation and R&D innovation as its foundation, constantly enhancing the competitiveness of its products
Product Description
|
item
|
spefication
|
|
Battery Type
|
Lithium Polymer Battery LiPo
|
|
Model Number
|
902030
|
|
Configuration
|
1S1P Single Cell
|
|
Nominal Voltage
|
3.7V
|
|
Rated Capacity
|
500mAh
|
|
Energy
|
1.85Wh
|
|
Charging Cut-off Voltage
|
4.2V ±0.05V
|
|
Discharge Cut-off Voltage
|
2.75V – 3.0V
|
|
Standard Charging Method
|
CC / CV
|
|
Standard Charging Current
|
0.2C – 0.5C 100–250mA
|
|
Maximum Charging Current
|
1C 500mA
|
|
Continuous Discharge Current
|
1C 500mA
|
|
Maximum Discharge Current
|
1.5C 750mA
|
|
Peak Discharge Current
|
2C 1000mA, short time
|
|
Cycle Life
|
≥500 cycles ≥80% capacity
|
|
Operating Temperature Charge
|
0°C to 45°C
|
|
Operating Temperature Discharge
|
-20°C to 60°C
|
|
Protection
|
Overcharge / Over-discharge / Over-current / Short Circuit
|
|
Protection Board
|
PCM Optional / Customizable
|
|
Cell Size
|
Approx. 9 × 20 × 30 mm
|
|
Weight
|
Approx. 10–12 g
|
|
Self-discharge Rate
|
≤3% per month
|
|
Certification
|
UN38.3 / MSDS / RoHS available
|
|
Certification
|
Key Advantages:
ISO9001 /3C Certified Factory
✅ UN38.3 / MSDS / CE / RoHS/UL/KC certificated
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ UN38.3 / MSDS / CE / RoHS/UL/KC certificated
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ Can customized per your detail request

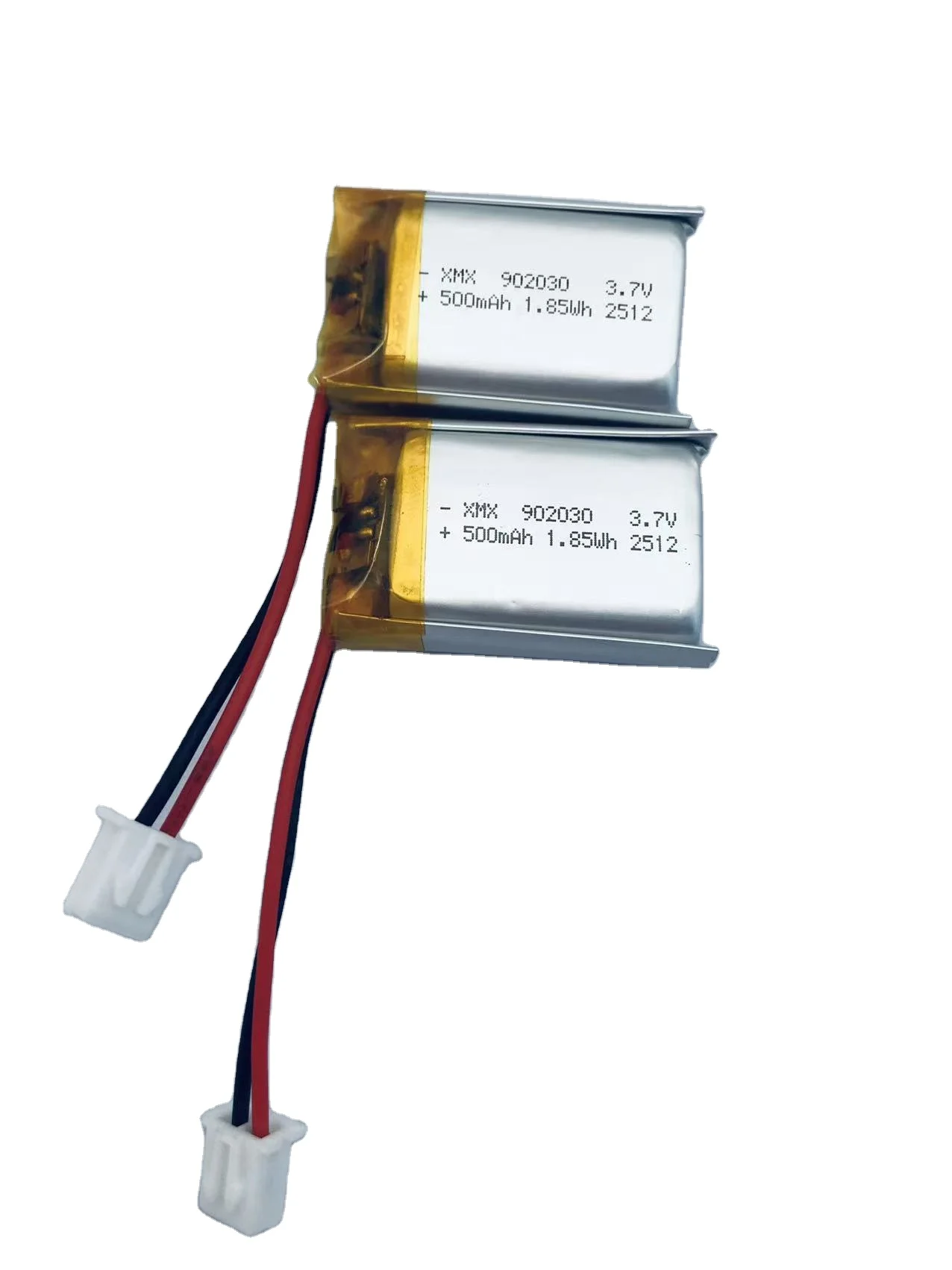

This 3.7V 500mAh lithium polymer battery is perfect for portable or motion sensor lights. It’s compact, lightweight, and rechargeable, providing consistent power for LED lighting devices. OEM/ODM customization available.

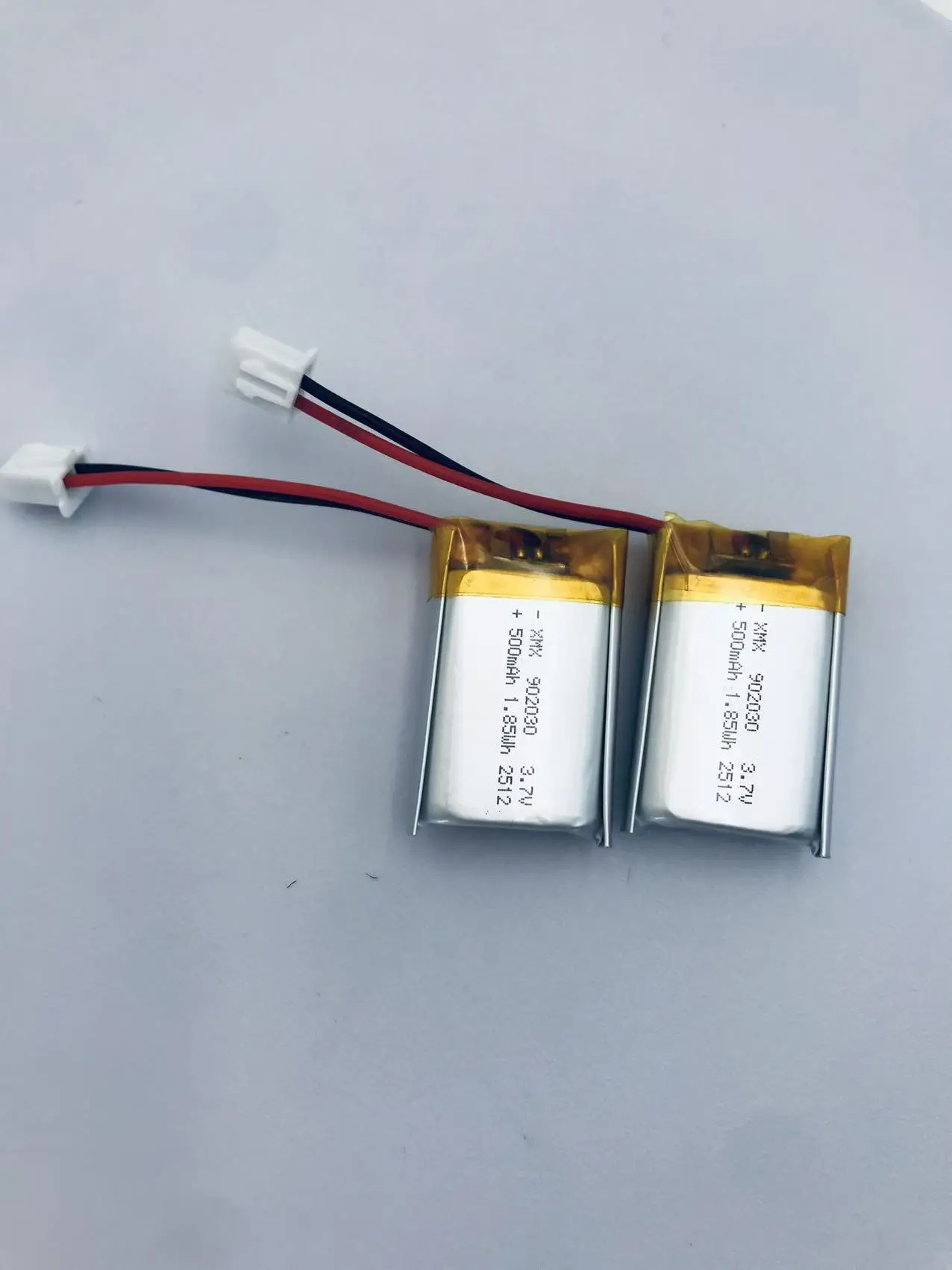

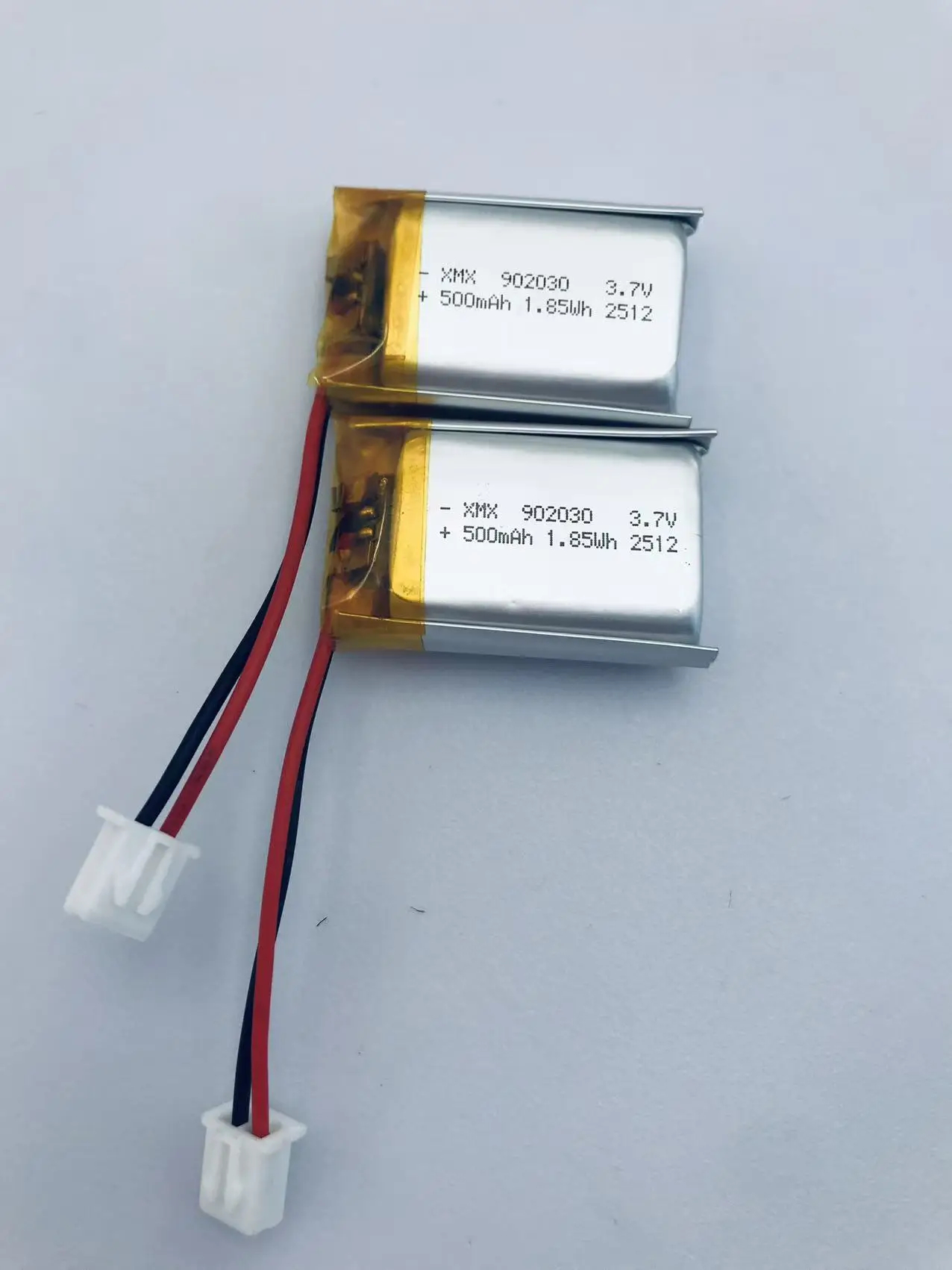

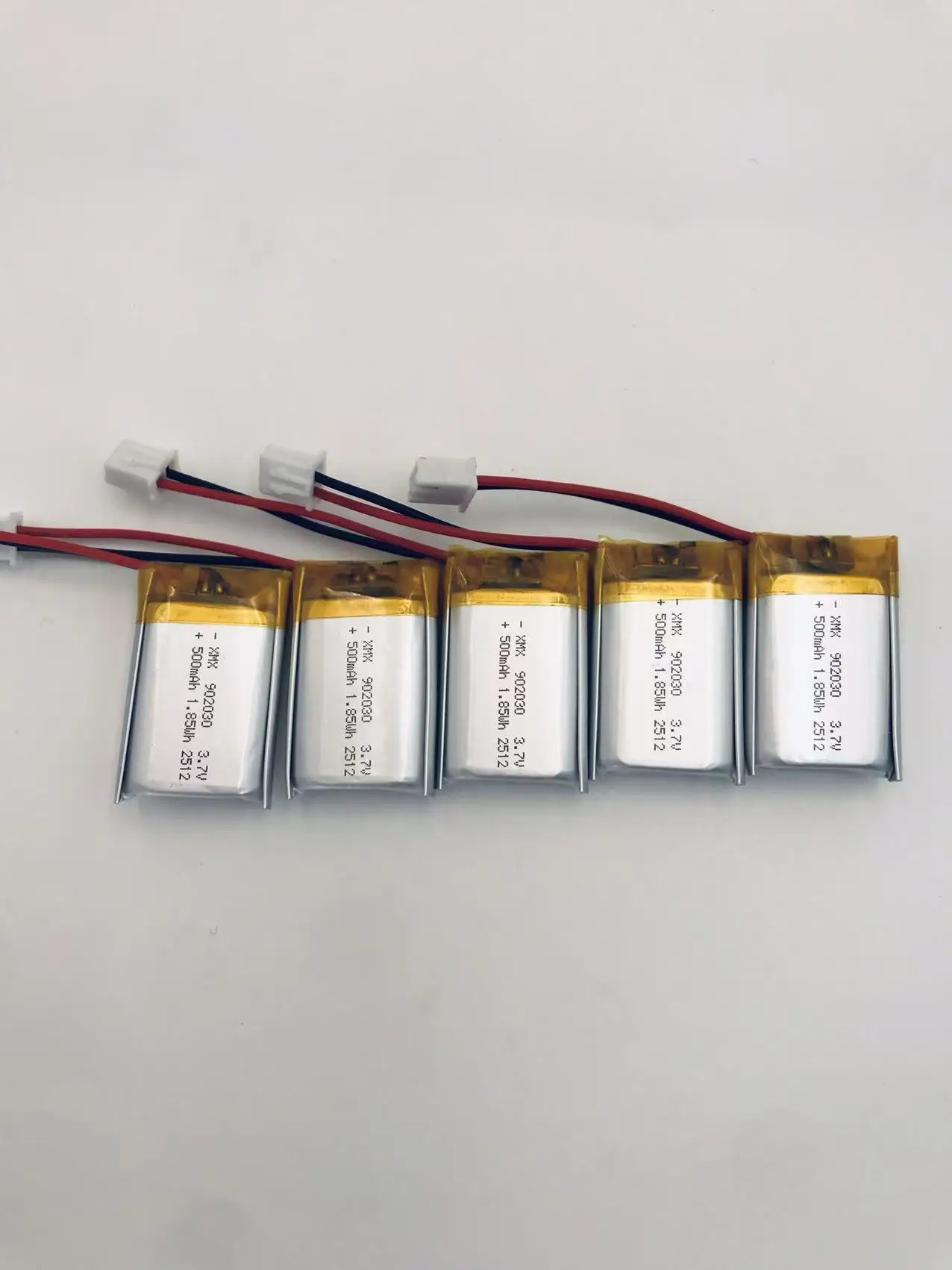

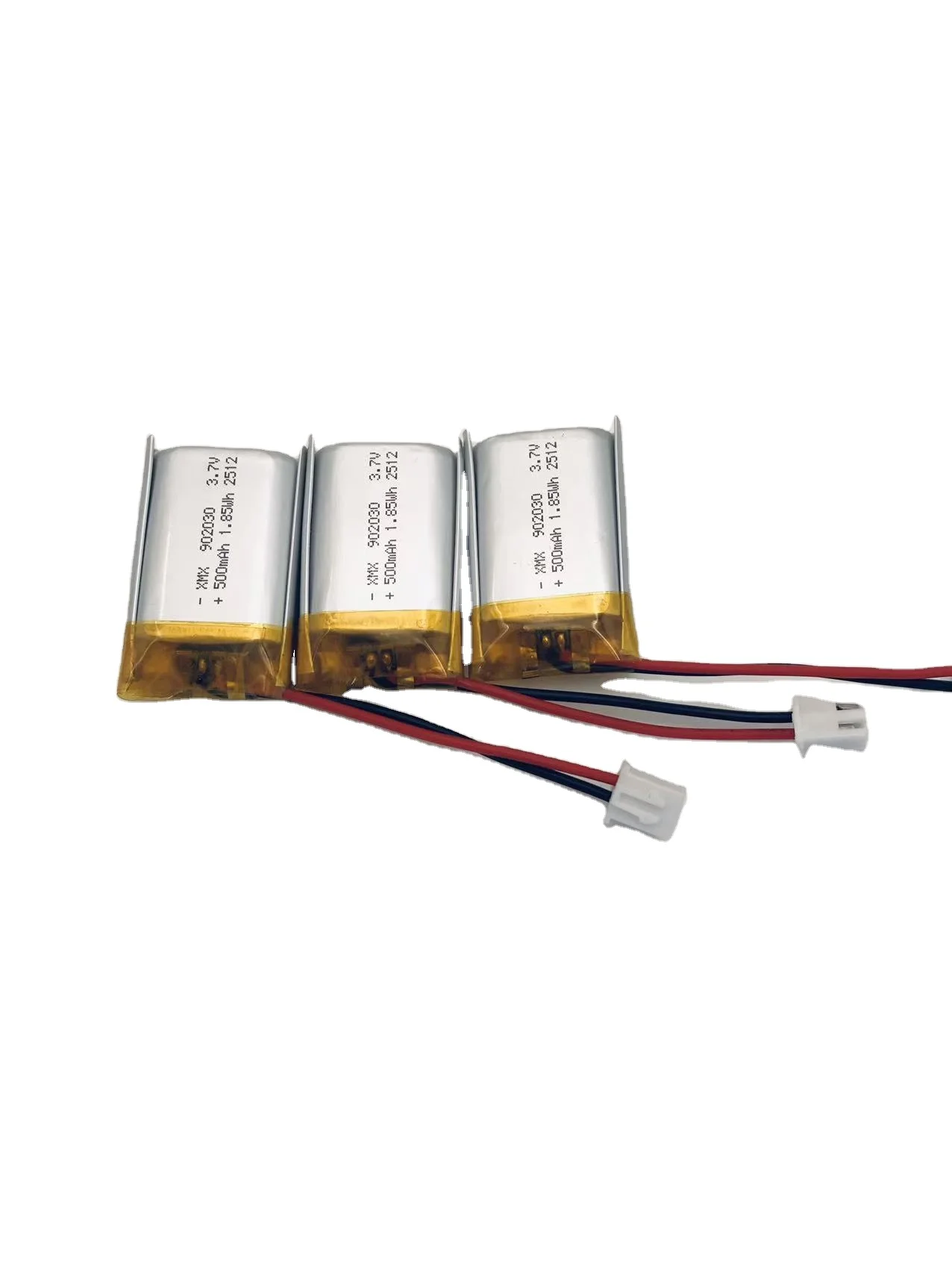

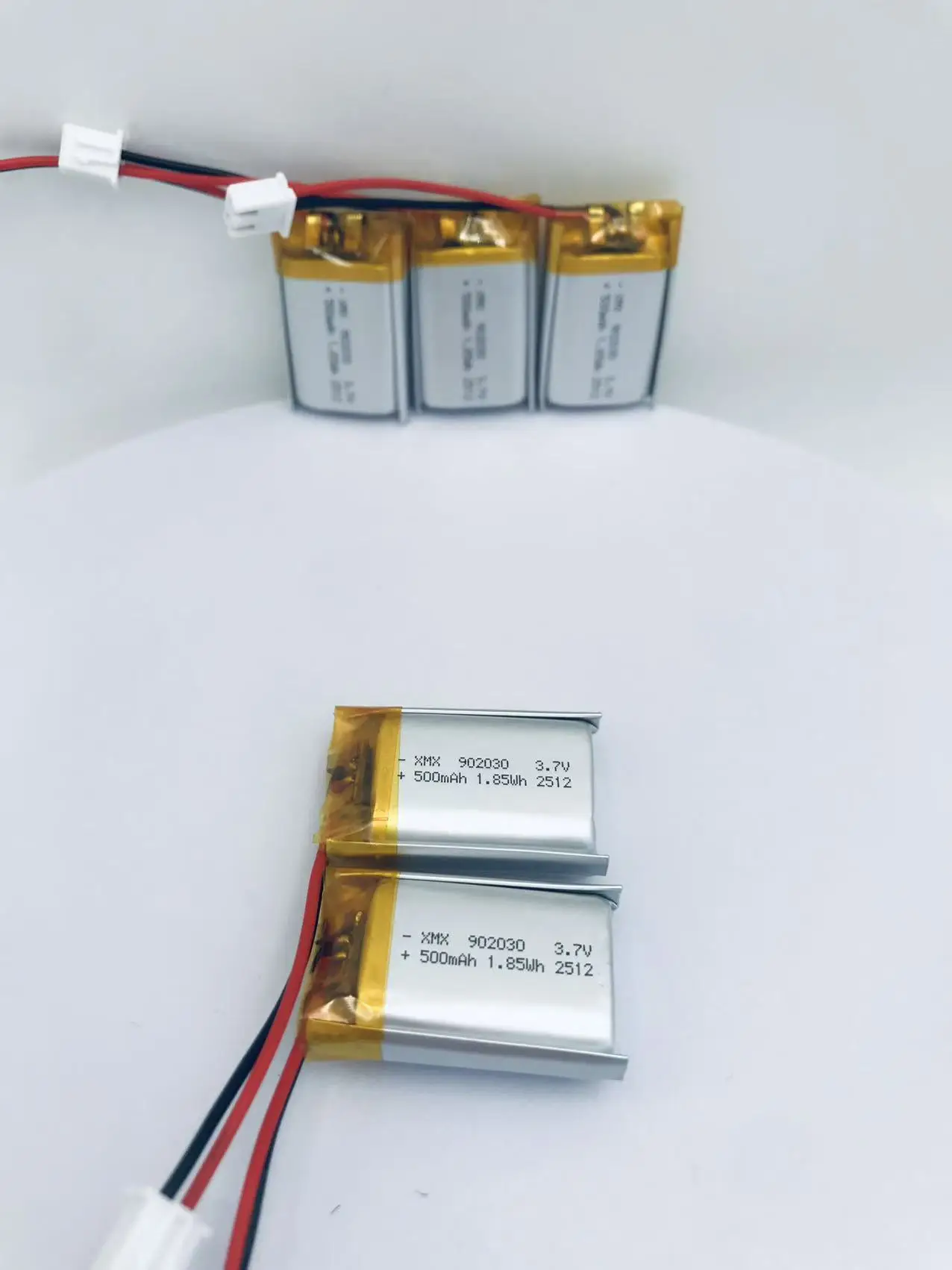

Detailed Images
Product detail drawing
产品细节图 +产品细节介绍
Stable 3.7V output suitable for direct device connection
Reliable capacity for long working time
Safe charging and discharging with built-in PCM
Reliable capacity for long working time
Safe charging and discharging with built-in PCM
Suitable for devices accepting 3.0–4.2V input voltage
Built-in protection against overcharge, over-discharge, over-current and short circuit
Continuous discharge current: 500mA
Peak discharge current: up to 800–1000mA short time
Peak discharge current: up to 800–1000mA short time
Introduction of product advantages or application effect or application mode
产品优点or使用效果or使用方式的介绍说明
Exclusive design
Highlights:
Compact size with high energy density
Stable 3.7V output for low-power devices
Built-in PCM for safe charging and discharging
Long cycle life and reliable performance
Custom wire, connector and packing available
Suitable for mass production projects
Compact size with high energy density
Stable 3.7V output for low-power devices
Built-in PCM for safe charging and discharging
Long cycle life and reliable performance
Custom wire, connector and packing available
Suitable for mass production projects
battery solution for your selection
Wearable devices
IoT sensors and smart terminals
Bluetooth modules
GPS tracking devices
Medical portable equipment
Smart cards & smart tags
Consumer electronics
DIY electronic projects

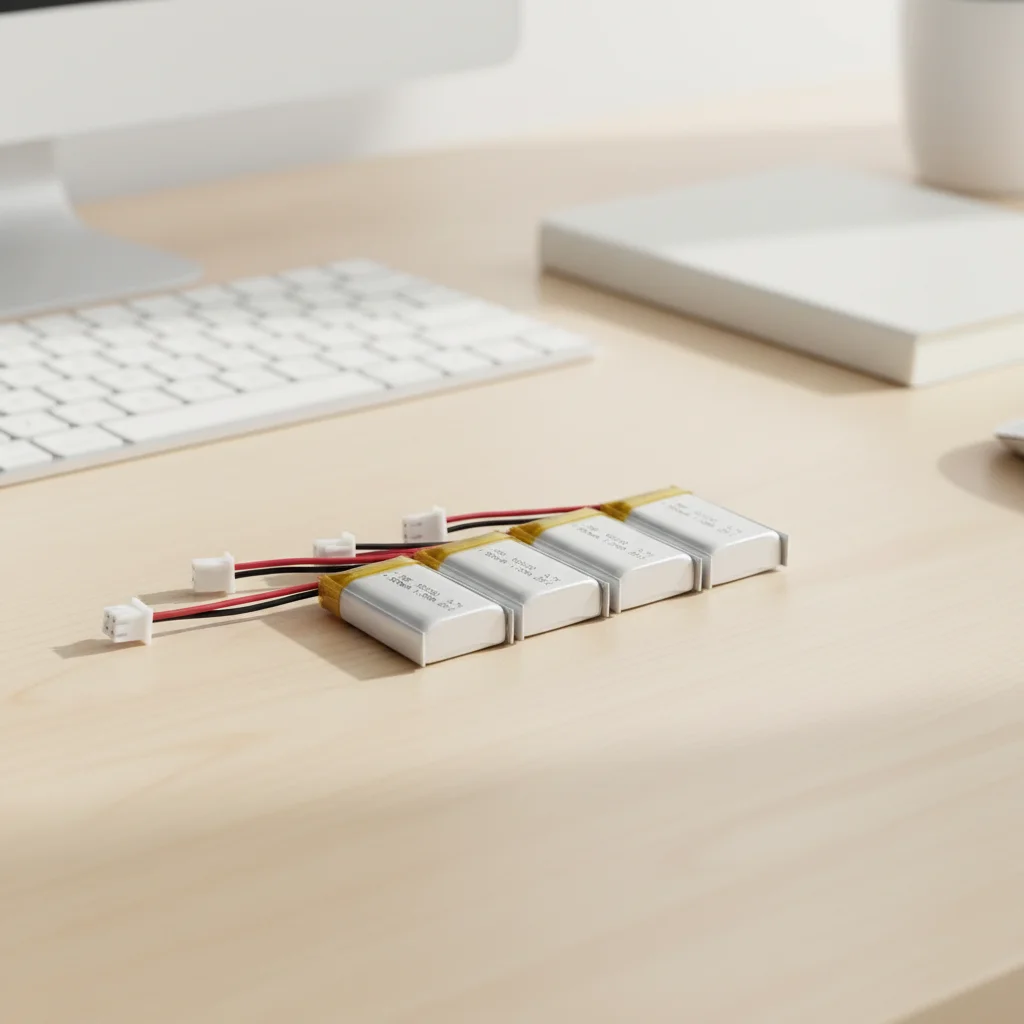

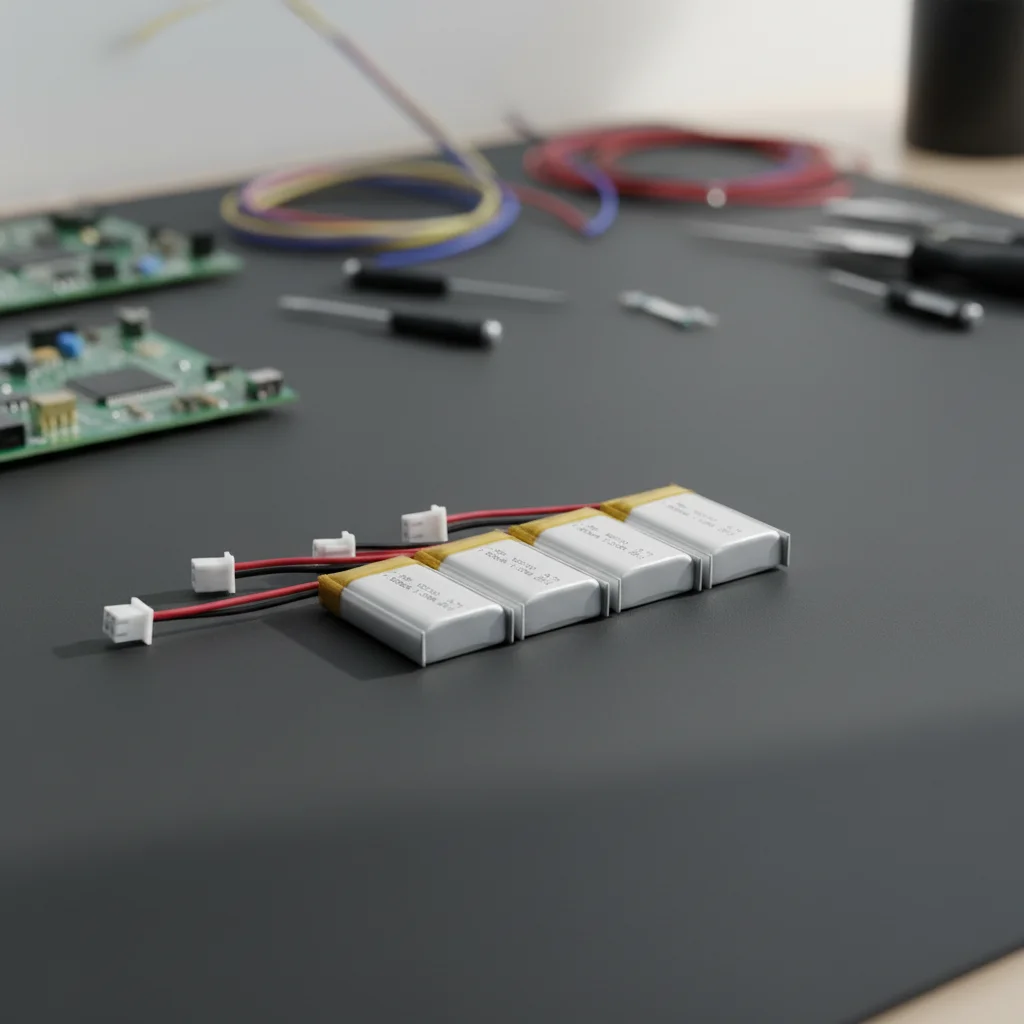

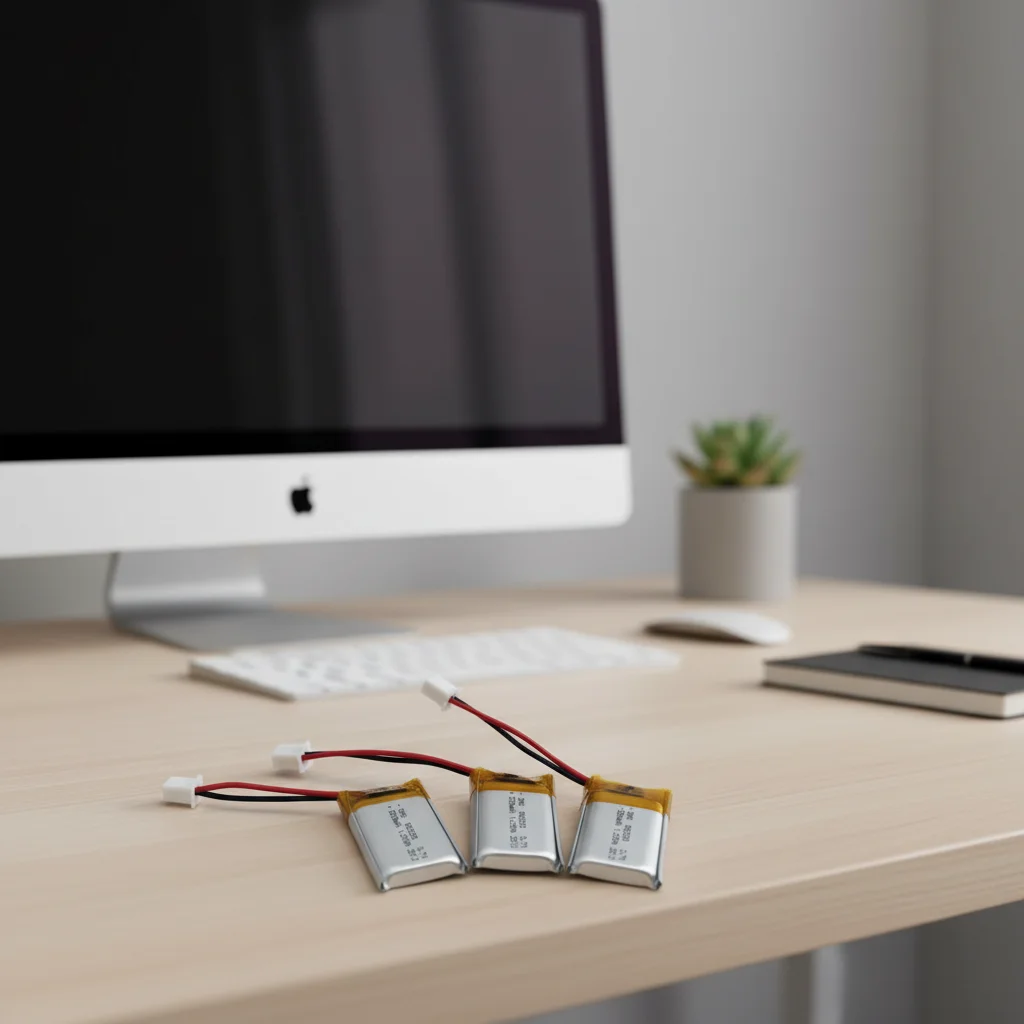

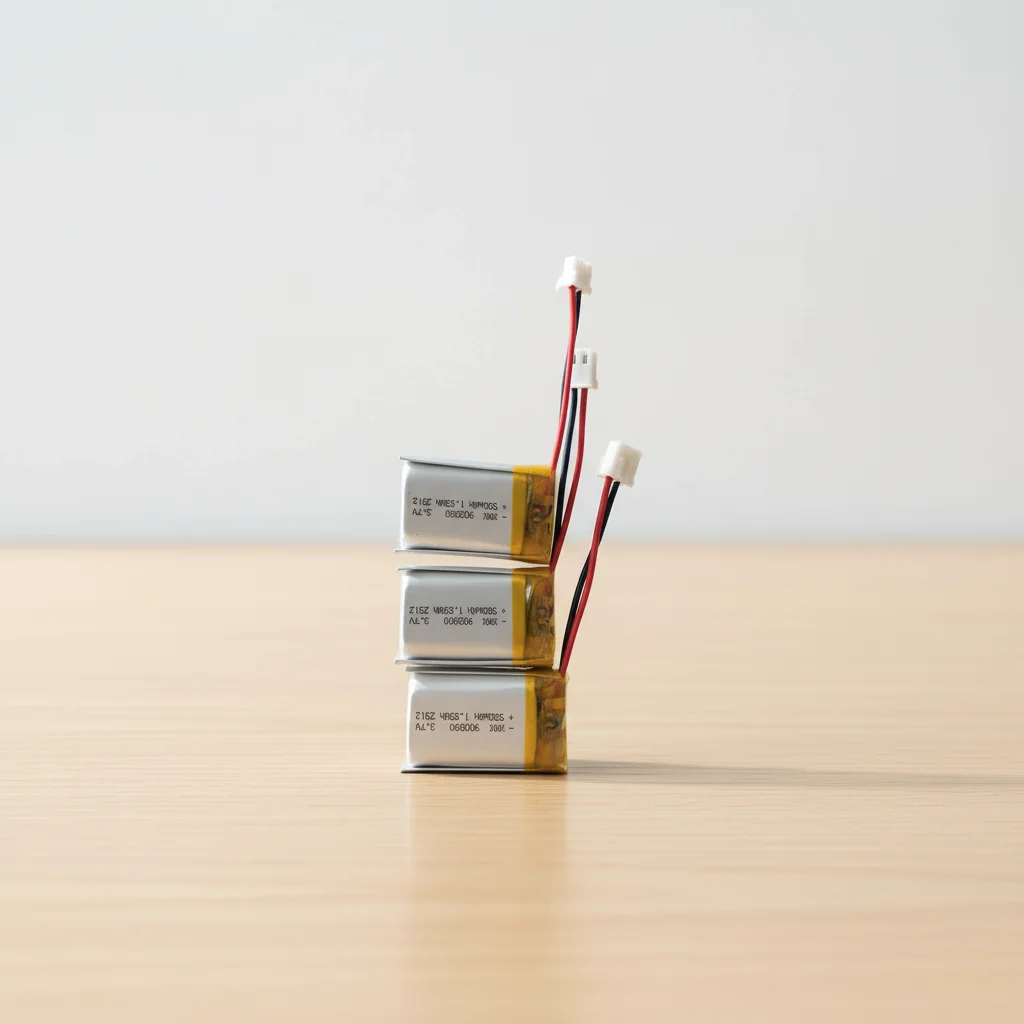

Product Presentation
This is a 3.7V single-cell lithium polymer battery, suitable for devices that directly accept 3.0–4.2V input.
If your device requires regulated voltage, external power management can be added on the device side.
-
shipment package
