- compatible brand : xmx
- rechargeable : RECHARGABLE
- Type : LIFEPO4 BATTERY
- use : Camera, Karaoke Microphone, MP3 / MP4 Player, tool
- model number : 32700
- brand name : OEM OR XMX
- place of origin : Guangdong, China
- battery type : Li-ion Batterty
- color : Silver, Blue
- nominal voltage : 3.2V
- products status : Stock
- Capacity : 6000mAh
- Place of Origin : Guangdong
- Color : Blue
- Voltage : 3.2v
- Keyword : 3.2v lifepo4 battery
- Charging life cycle : 2000-3000 Cycle Times
* 6000mAh Capacity | 3.2V Nominal
* 2000+ Cycles | Inherently Safe LiFePO4
* Start with the safest lithium chemistry for your energy projects. Our 32700 LiFePO4 cell delivers reliable power with a
lifespan measured in thousands of cycles. Perfect for DIY and professional applications.
* Pack more power into your designs. The 6000mAh capacity in our 32700 cell means fewer cells per pack, simpler assembly, and
higher energy density for solar storage, e-bikes, and power tools.
* 3C Continuous Discharge 18A
* 5C Peak Pulse 30A
cell maintains stable voltage under heavy loads without sagging.
Introduction of product advantages or application effect or application mode

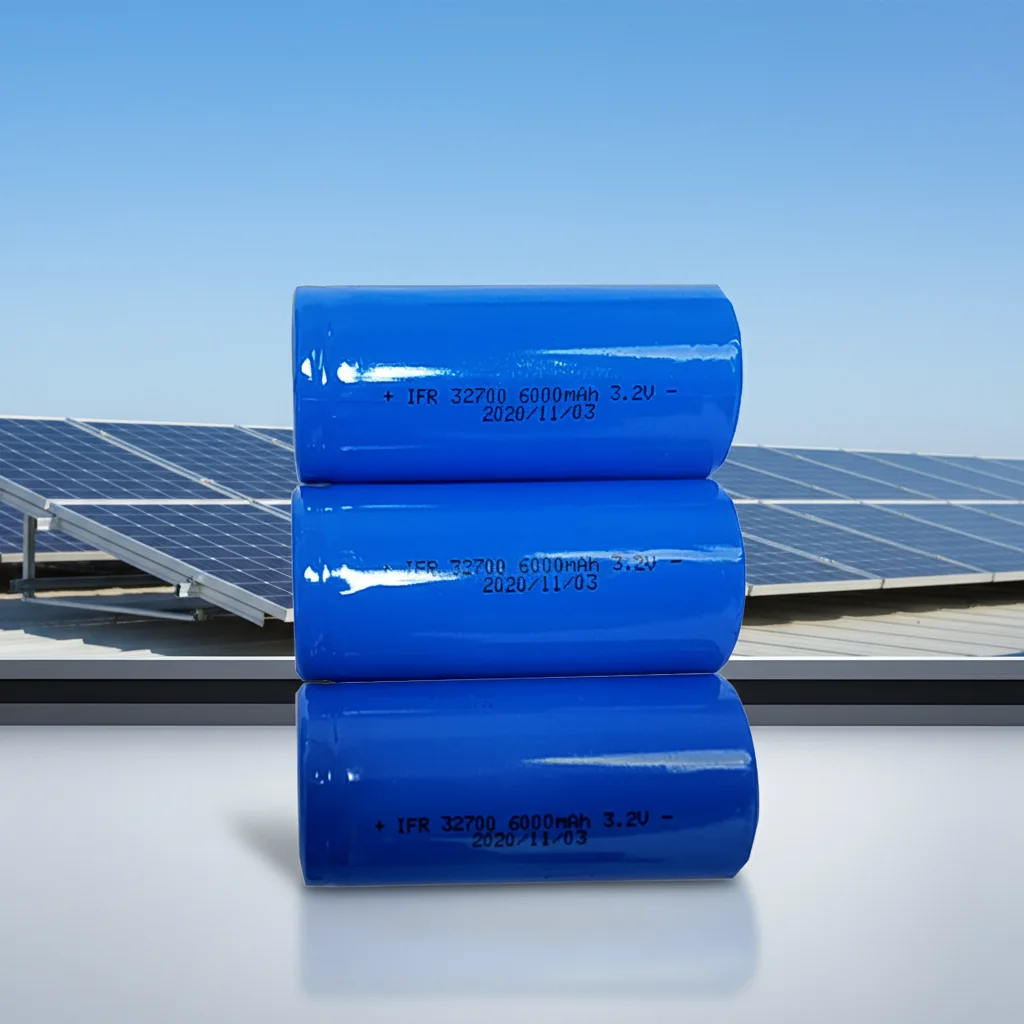

* Solar Energy: Home storage, solar street lights, portable power stations.
* Electric Mobility: E-bikes, e-scooters, golf carts, electric motorcycles.
* Power Tools: Cordless drills, saws, lawn mowers, cleaning machines.
* Backup Power: UPS systems, emergency lighting, telecom backups.
* Consumer & Specialty: Marine equipment, RV power, medical devices, hobby projects.
non-negotiable.
* uD83DuDD0B High Energy Density: 6000mAh capacity in a compact 32700 size allows for powerful yet space-efficient battery pack designs.
* ⚡ High Power Output: Delivers up to 3C continuous discharge 18A, handling high-drain devices like power tools and e-scooters
with ease.
Total Cost of Ownership TCO.
* uD83CuDF21️ Wide Temperature Range: Performs reliably from -20°C to 60°C, making it ideal for demanding outdoor and automotive
environments.
* uD83DuDD27 Ready-to-Integrate: Available with flat top, pre-soldered nickel tabs, or wires. Full OEM/ODM support for custom needs.

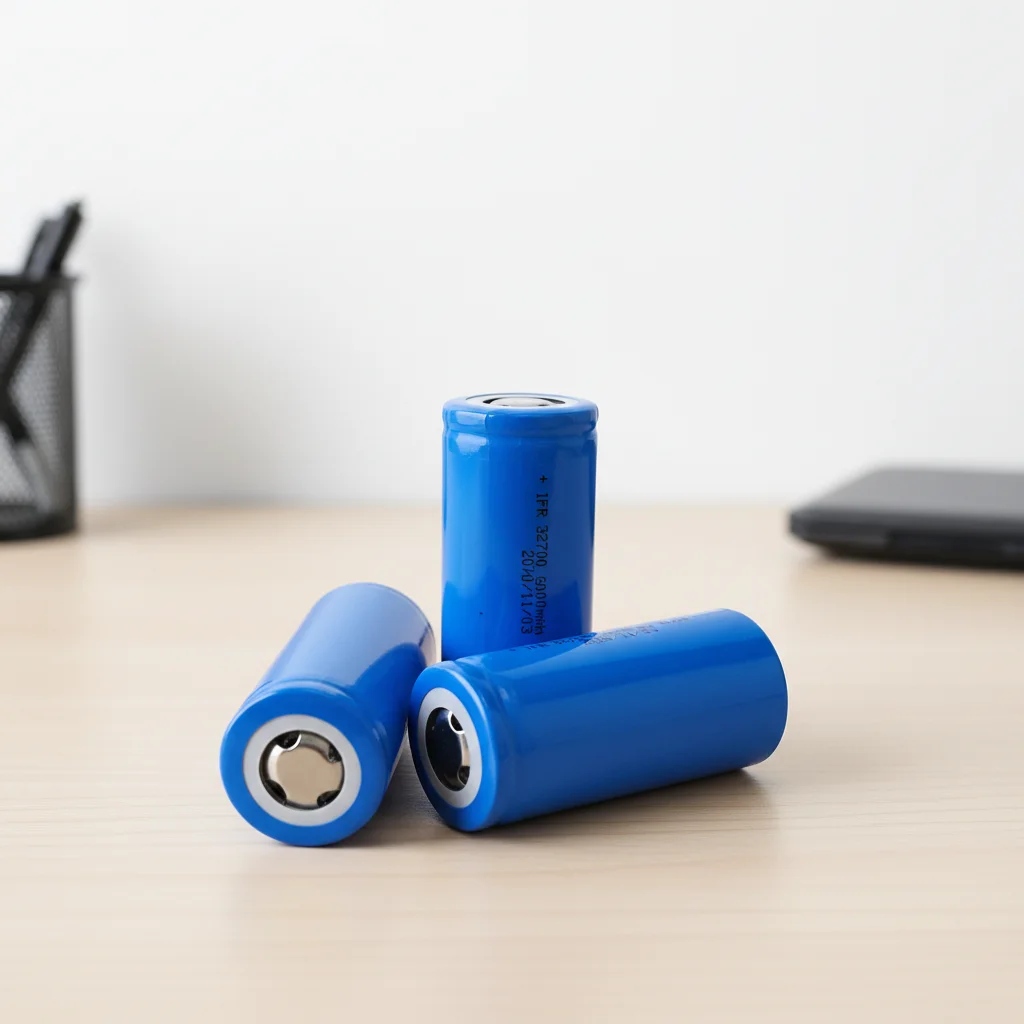

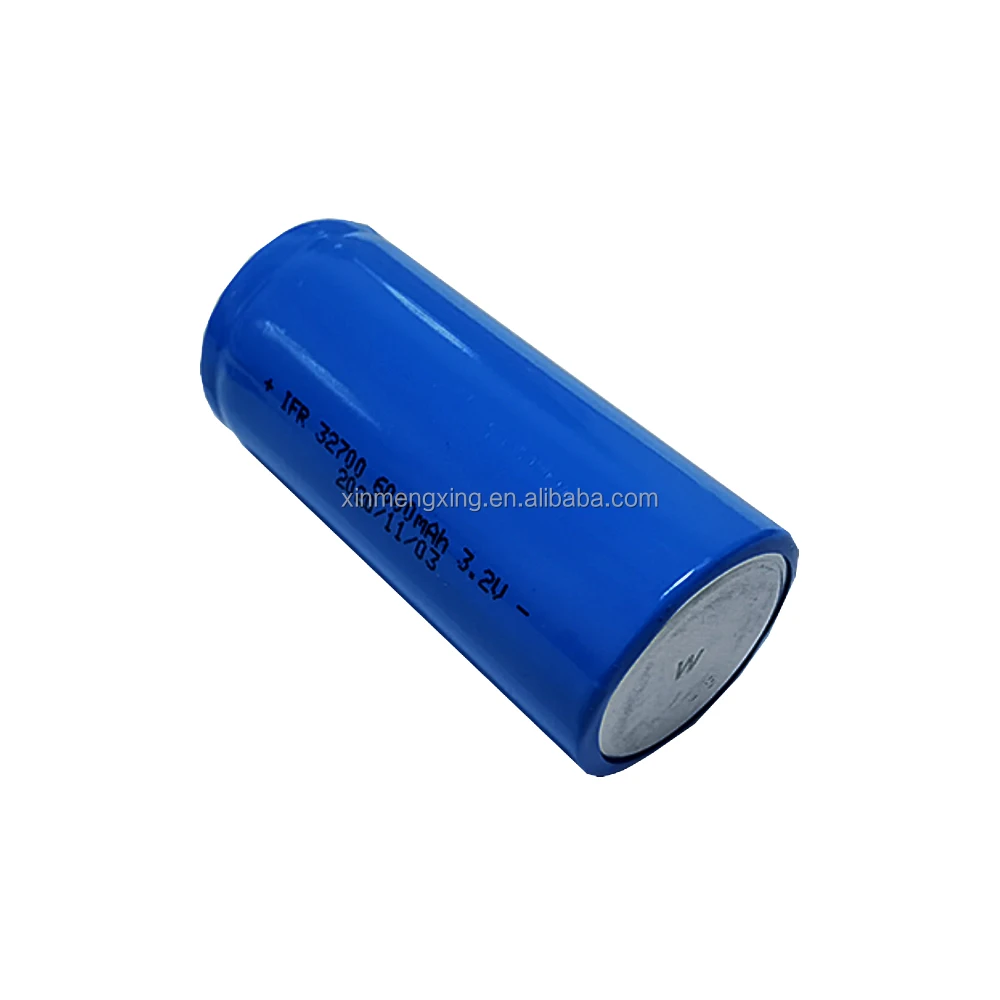

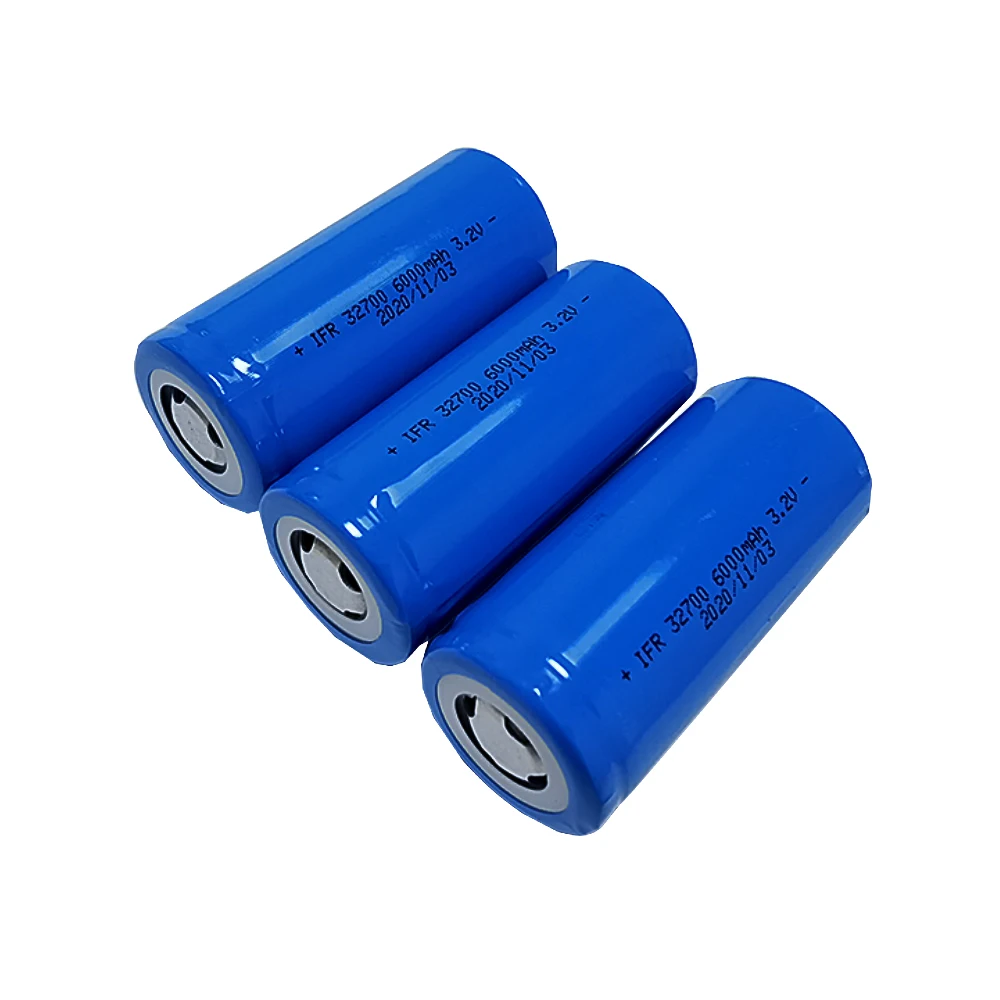

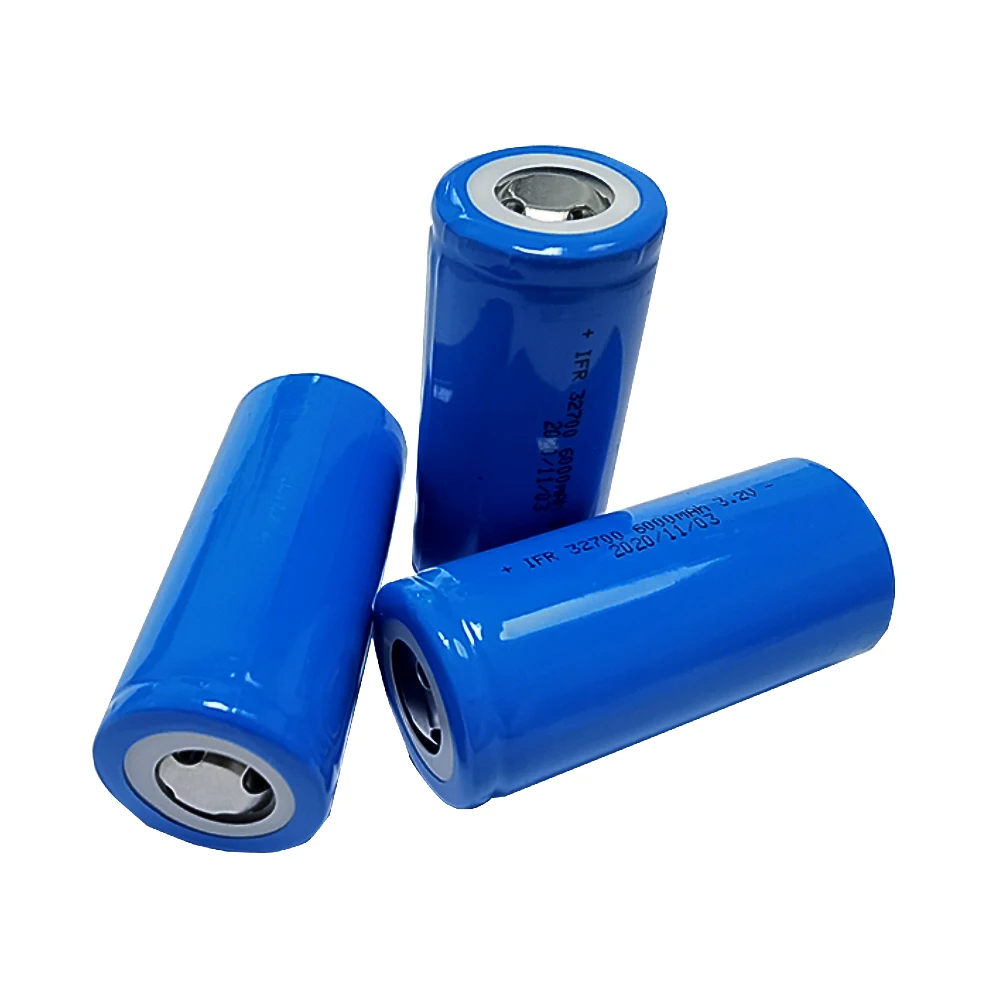

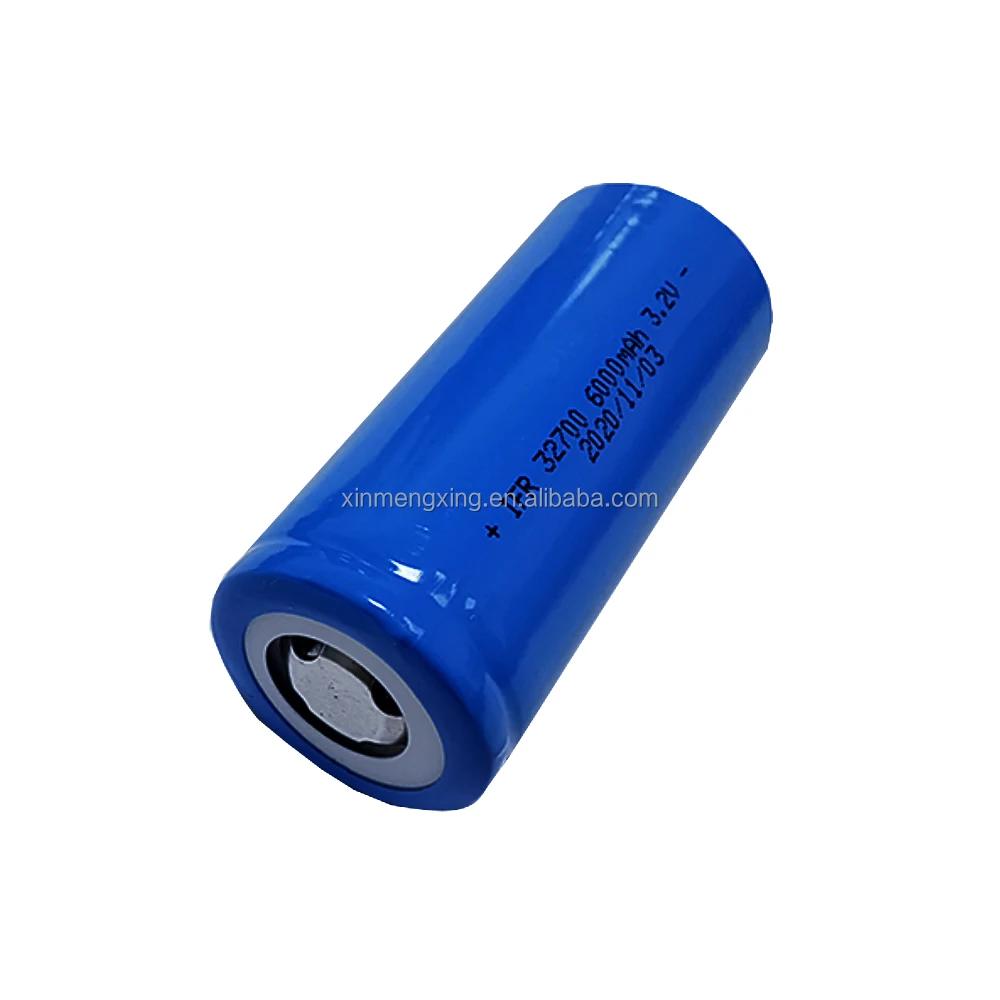

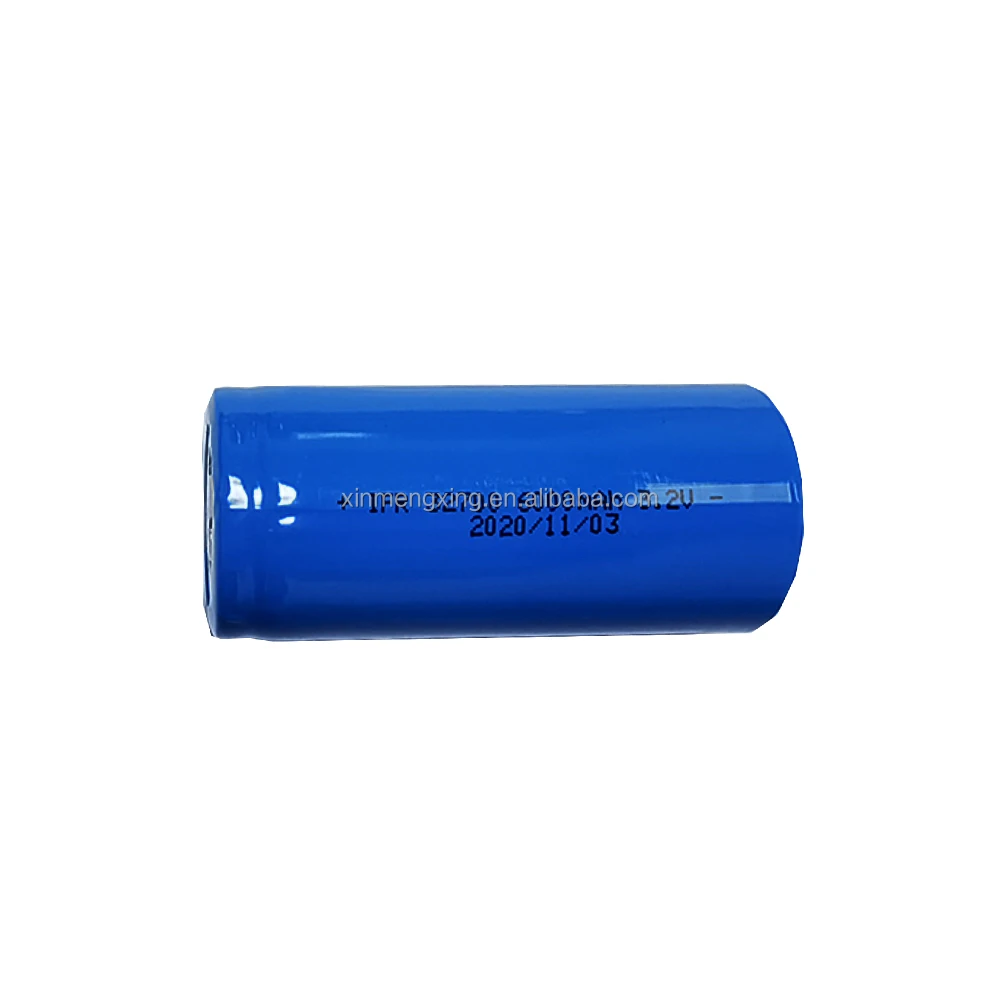

This is a 32700 cylindrical rechargeable battery utilizing Lithium Iron Phosphate LiFePO4 technology. With core specifications of 3.2V nominal voltage and 6000mAh 6Ah nominal capacity, it integrates key advantages of high energy density, inherent safety, exceptional longevity, and high-power output.
|
Parameter
|
Specification
|
Remarks / Condition
|
|
Model
|
LFP32700-6000
|
Custom model marking available for OEM/ODM
|
|
Chemistry
|
LiFePO4 Lithium Iron Phosphate
|
Inherently safe & stable chemistry
|
|
Nominal Voltage
|
3.2V
|
Standard for LiFePO4 cells
|
|
Nominal Capacity
|
6000mAh 6.0Ah
|
Typical @ 0.2C discharge rate to 2.0V
|
|
Energy
|
Approx. 19.2 Wh
|
Calculated 3.2V * 6.0Ah
|
|
Internal Resistance
|
≤ 15 mΩ
|
Typical, AC 1kHz method
|
|
Standard Charge
|
0.5C 3000mA
|
Constant Current CC then Constant Voltage CV
|
|
Max. Charge Current
|
1C 6000mA
|
Recommended for fast charging
|
|
Charge Cut-off Voltage
|
3.65V ± 0.05V
|
CV stage terminates when current drops to 0.05C
|
|
Standard Discharge
|
0.5C 3000mA
|
|
|
Max. Continuous Discharge
|
3C 18,000mA
|
Suitable for high-power applications
|
|
Peak Discharge 10s
|
5C 30,000mA
|
|
|
Discharge Cut-off Voltage
|
2.0V
|
|
|
Cycle Life
|
≥ 2000 cycles
|
@ 0.5C, 100% DOD, to 80% initial capacity
|
|
Operating Temperature
|
Charge: 0°C to 45°C
Discharge: -20°C to 60°C |
Optimal performance at 20°C~25°C
|
|
Storage Temperature
|
-5°C to 35°C Recommended
|
Store at 30%~50% State of Charge SOC
|
|
Dimensions D x H
|
32.0±0.3mm x 70.5±0.4mm
|
With standard flat top / button top
|
|
Weight
|
145g ± 5g
|
|
|
Terminal Type
|
Standard: Flat Top
|
Options: Pre-soldered tabs/wires, nickel strips
|
|
Certifications
|
CE, RoHS, UN38.3, MSDS
|
Test reports available upon request
|
|
Warranty
|
12 Months
|
Against manufacturing defects
|
|
Warranty
|
12 Months
|
Against manufacturing defects
|
Q1: Do I need a special charger for this battery?
A: Yes, a CC-CV Constant Current-Constant Voltage charger designed for LiFePO4 chemistry with a cutoff voltage of 3.65V is
required for optimal performance and safety.
Q2: Can it be fast-charged?
A: Yes. With a maximum charge current of 1C 6000mA, it can be charged from empty in approximately 1.5 hours using a compatible
charger.
Q3: Can these cells be connected in series or parallel?
A: Yes. However, for multi-cell packs especially in series, using a Battery Management System BMS is highly recommended to
ensure balance, protection, and longevity.
Q4: What is the Minimum Order Quantity MOQ?
A: Standard product MOQ is 200pcs. MOQ for custom projects is negotiable based on requirements.
Q5: Are samples available?
A: Yes, sample orders are welcome. We can provide samples with pre-soldered wires or nickel strips upon request.
Q6: What is the lead time?
A: Standard products: 7-15 days. Customized orders: 15-30 days, depending on complexity.
