- Brand Name : XMX
- Battery Size : 3.2v 314ah, 3.2v 314AH
- Battery Type : Liquid
- Cycle Life : 8000+
- Cathode Materials : LiFePO4
- Application : Consumer Electronics, Power Tools, Boats, Toys, Uninterruptible Power Supplies, Electric Wheelchairs, Solar Energy Storage Systems
- Model Number : 3.2v 314ah
- Weight : 5.6KG
- Operating Temperature℃ : -20-60℃
- Place of Origin : Guangdong, China
- Capacity : 314AH
- Voltage : 3.2V-3.65V
- OEM/ODM : Accepatable
- MOQ : 4Pcs
- Keywords : ev e mb31
- Protection : Built-in Smart BMS
- Usage : Solar Energy Storage Systems
- The charging ratio : 1C
- The discharge rate : 1C
|
General Specification
|
Model Name
|
3.2V 280Ah
|
3.2V 230Ah
|
3.2V 302Ah
|
|
Rechargeable
|
YES
|
YES
|
YES
|
|
|
Max CapacitymAh
|
280Ah
|
230Ah
|
302Ah
|
|
|
Min CapacitymAh
|
280Ah
|
230Ah
|
302Ah
|
|
|
Internal resistance with welded stud
|
≤0.25mΩ
|
≤0.30mΩ
|
0.18±0.05m Ω
|
|
|
Charge temperature
|
0°C ~ 45°C
|
0°C ~ 60°C
|
0~65℃
|
|
|
Max charge current
|
0.5C（280A）
|
1C（230A）
|
1C 302A
|
|
|
Max. Discharge Current
|
0.5C（280A）
|
1C（230A）
|
1C 302A
|
|
|
Dimension and Weight
|
DimensionH*W*T,mm
|
200*173*72mm
|
174*54*207mm
|
206*175*73mm
|
|
WeightKG
|
5.3kg
|
4.3kg
|
5.5kg
|
|
|
Suitable for
|
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools…Solar and wind power system,RV,caravan
|

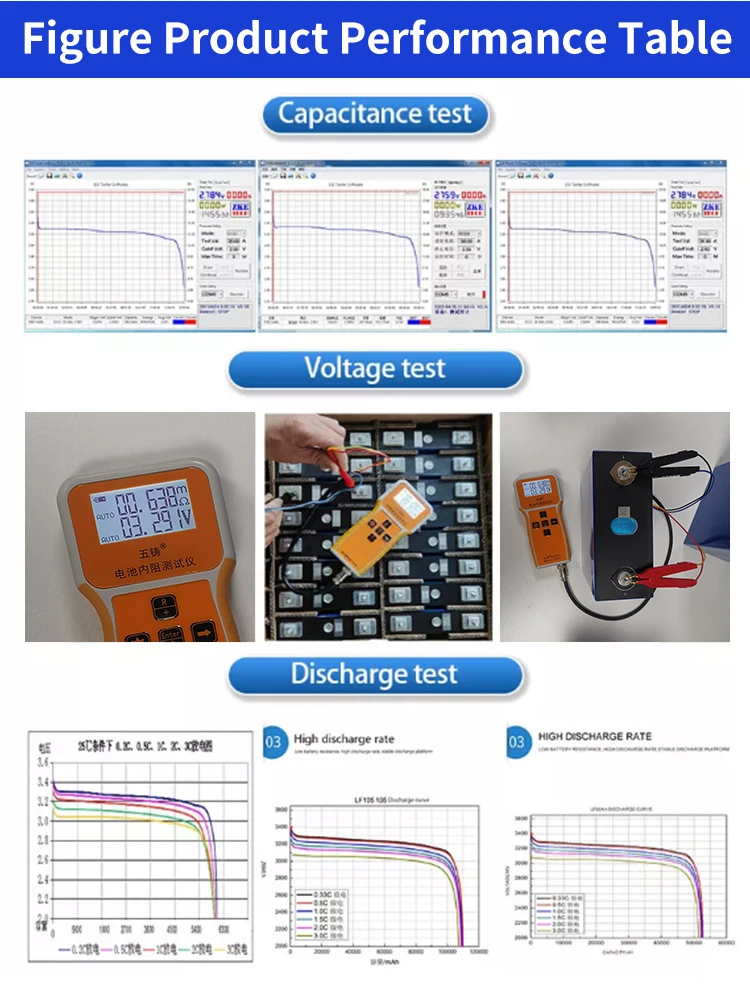

Details Images
shipping and Delivery
*We have USA ,EU overseas warehouse , You can enjoy FREE Shipping + FAST Delivery + NO tax + STOCK is King!!!
*How we guarantee TOP quality?
Each cell Voltage, Internal Resistance Tested 3times Before Shipping.Make Sure You Received Top quality,Brand New With Original QR Code
* Use high hardness custom sponge to strengthen the battery* 5 layers of dangerous goods export corrugated carton
*The price comes with FREE Bus bars and Bolts，one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）
If need more please contact us online.Thank you!!!
If need more please contact us online.Thank you!!!
|
To Where
|
From Where
|
Logistics Mode
|
Time
|
Advantage
|
|
Ship To US
|
From China
|
By Sea +DeliveryDDP
|
ETA40-55Days
|
Cheap
|
|
From Oversea
|
DeliveryTax Free
|
ETD2-4Days
|
Timely
|
|
|
Ship To EU
|
From China
|
By Sea +DeliveryDDP
|
ETA40-55Days
|
Cheap
|
|
From Oversea
|
DeliveryTax Free
|
ETD2-4Days
|
Timely
|
|
|
Ship To AU
|
From China
|
By Sea +DeliveryDDP
|
ETA40-55Days
|
Cheap
|
|
From Oversea
|
DeliveryTax Free
|
ETD2-4Days
|
Timely
|
|
|
Noted: The tracking will be update after pick up by local express. Please wait patiently or contact us for help.Countries that don’t appear in the table.Please click here to consult us for freight charges
|
