- compatible brand : oem
- rechargeable : RECHARGABLE
- Type : Li-Ion, Rechargeable Batteries, Battery Pack, Standard Battery, Storage Batteries, Rechargeable Batteries
- use : portable Power
- model number : LFP40135 4S1P
- brand name : xmx
- place of origin : Guangdong, China
- battery type : Lithium Battery Rechargeable
- color : blue
- nominal voltage : 12.8V, 20000mah
- Model Number : LFP40135 4S1P
- Product Name : Lifepo battery pack
- Rechargeable : Rechareable Battery
- Capacity : 20000mah
- Brand Name : XMX or OEM
- Voltage : 12.8V
|
Item
|
Speficiation
|
|
Model No.
|
XMX-LFP-40135-4S1P-12.8V20Ah
|
|
Cell Type
|
40135 LiFePO₄ Cylindrical Cells
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
20Ah
|
|
Energy
|
256Wh
|
|
Configuration
|
4S1P
|
|
Charge Voltage
|
14.6V
|
|
Discharge Cut-off Voltage
|
10.0V
|
|
Continuous Discharge Current
|
20A customizable 10–40A
|
|
Cycle Life
|
≥2000 cycles @ 80% DOD
|
|
BMS Protection
|
Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature
|
|
Case Material
|
ABS / Aluminum
|
|
Connector Type
|
Anderson / XT60 / DC / Customized
|
|
Charging Temperature
|
0°C – 45°C
|
|
Discharging Temperature
|
-20°C – 60°C
|
|
Storage Temperature
|
0°C – 40°C
|
|
Certifications
|
UN38.3, CE, MSDS, RoHS
|
|
OEM/ODM
|
Available
|
Product Description
Key Advantages:
ISO9001 Certified Factory
✅ UN38.3 / MSDS / CE / RoHS/UL/KC
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ UN38.3 / MSDS / CE / RoHS/UL/KC
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
Our custom lithium ion battery packs are designed for solar energy storage, e-bikes, and industrial applications. Each pack uses
high-quality 21700 or 18650 cells with smart BMS protection.
high-quality 21700 or 18650 cells with smart BMS protection.
Detailed Images

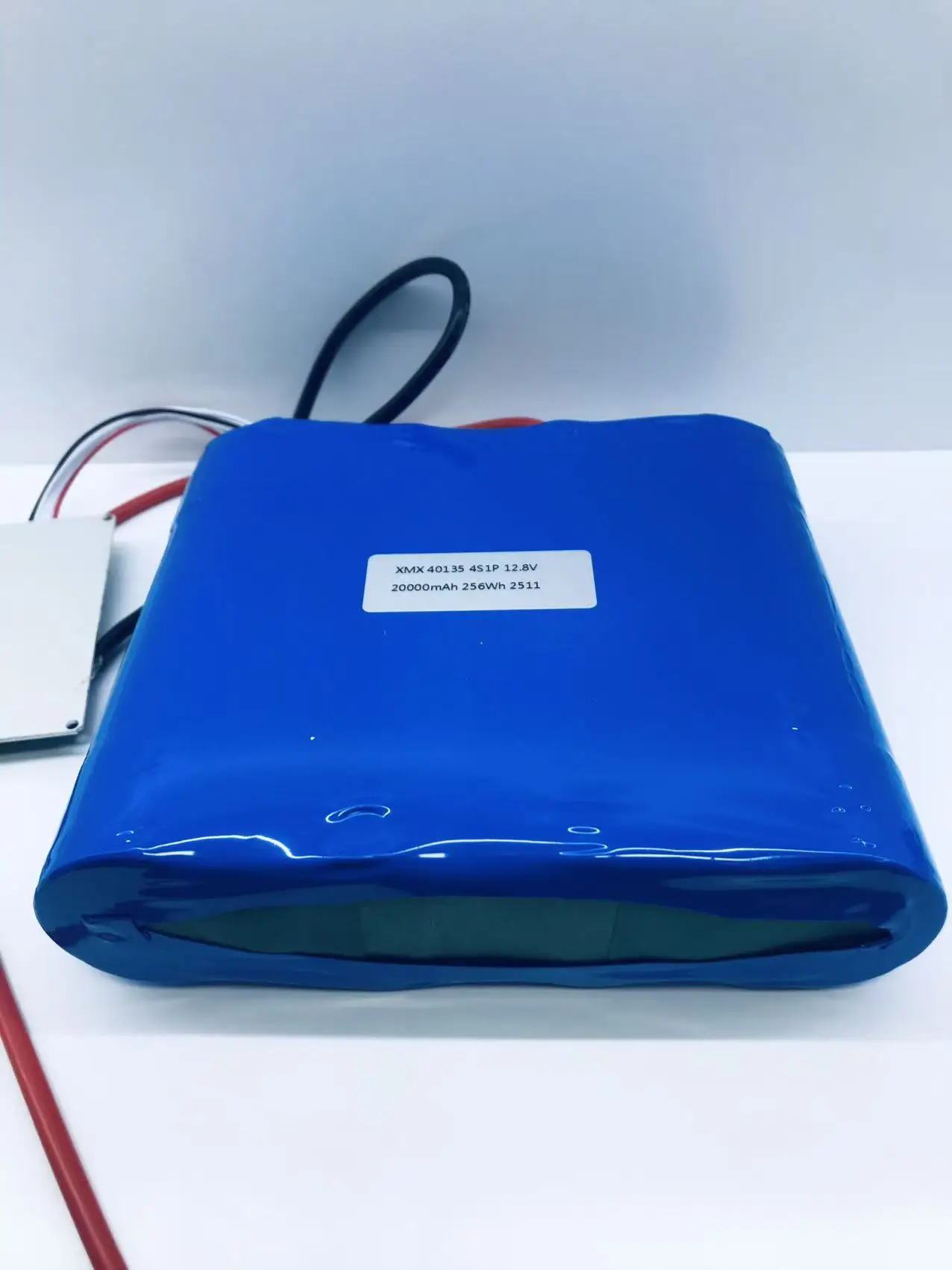

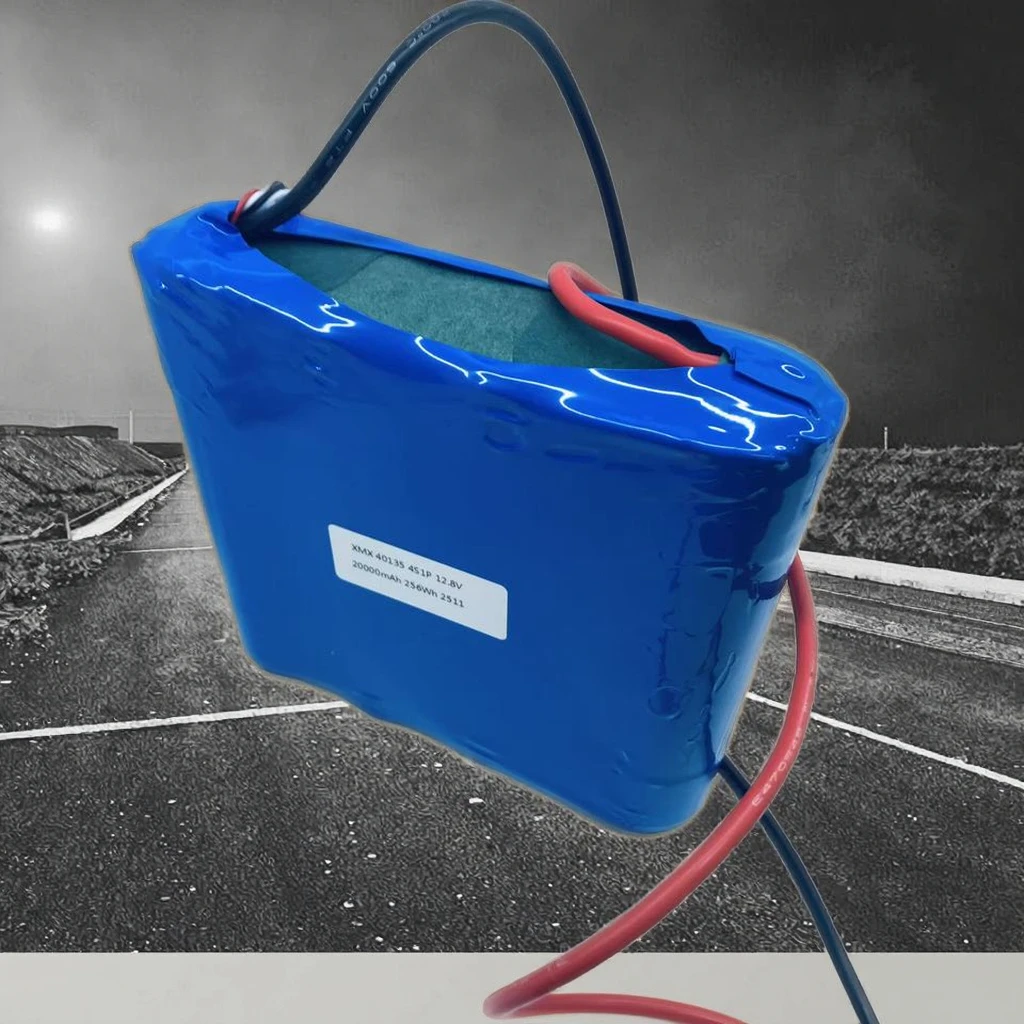

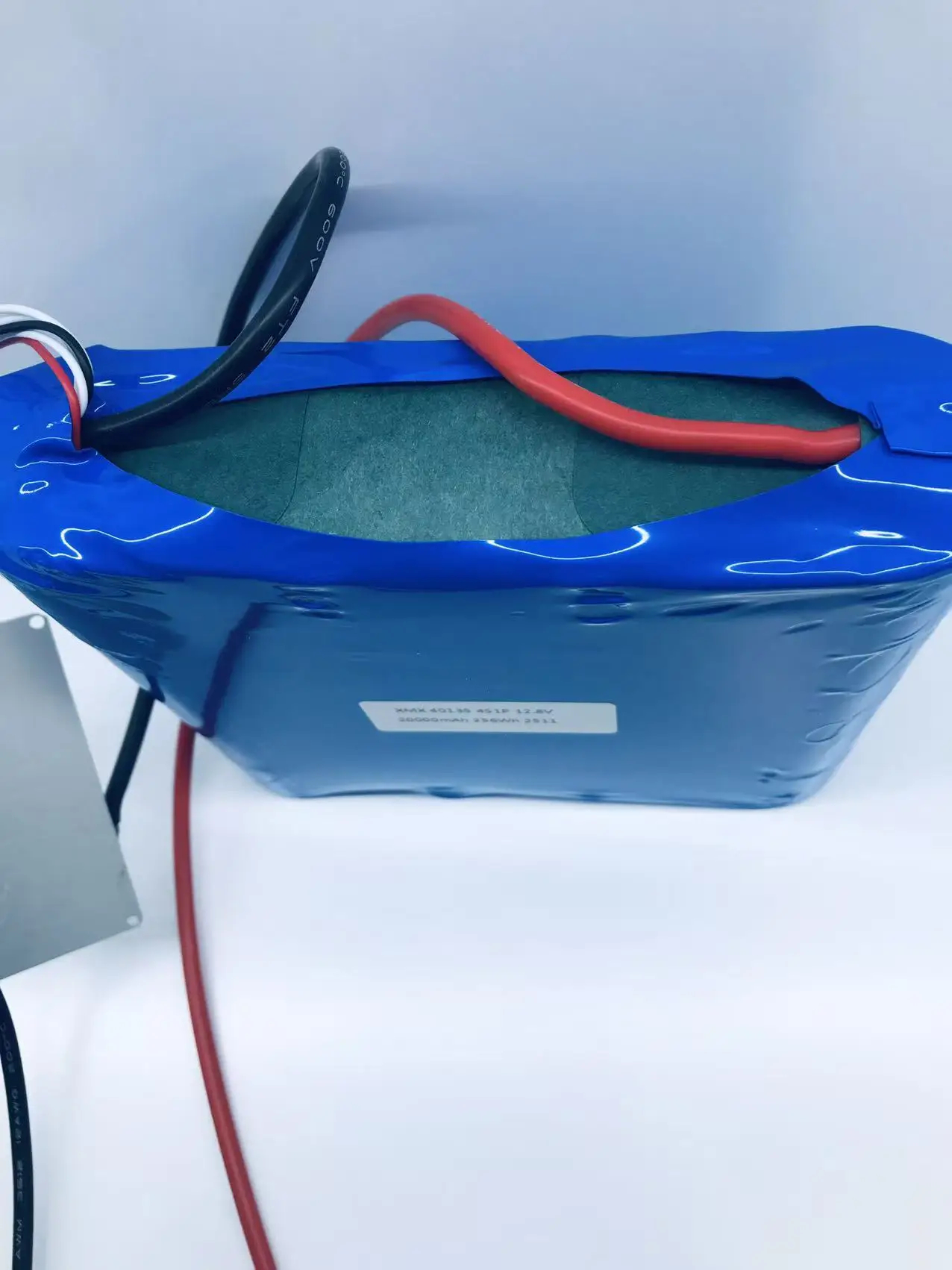

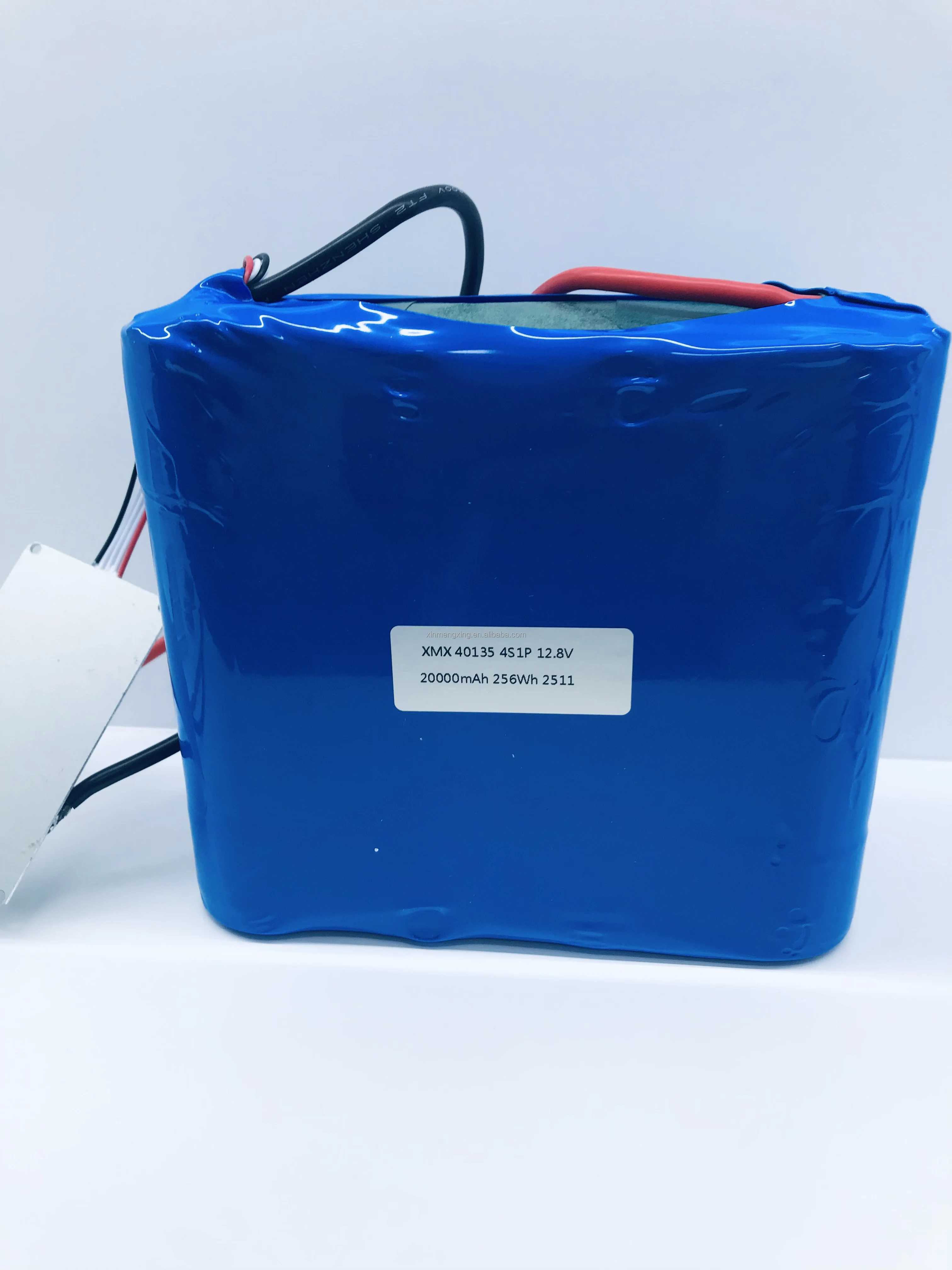

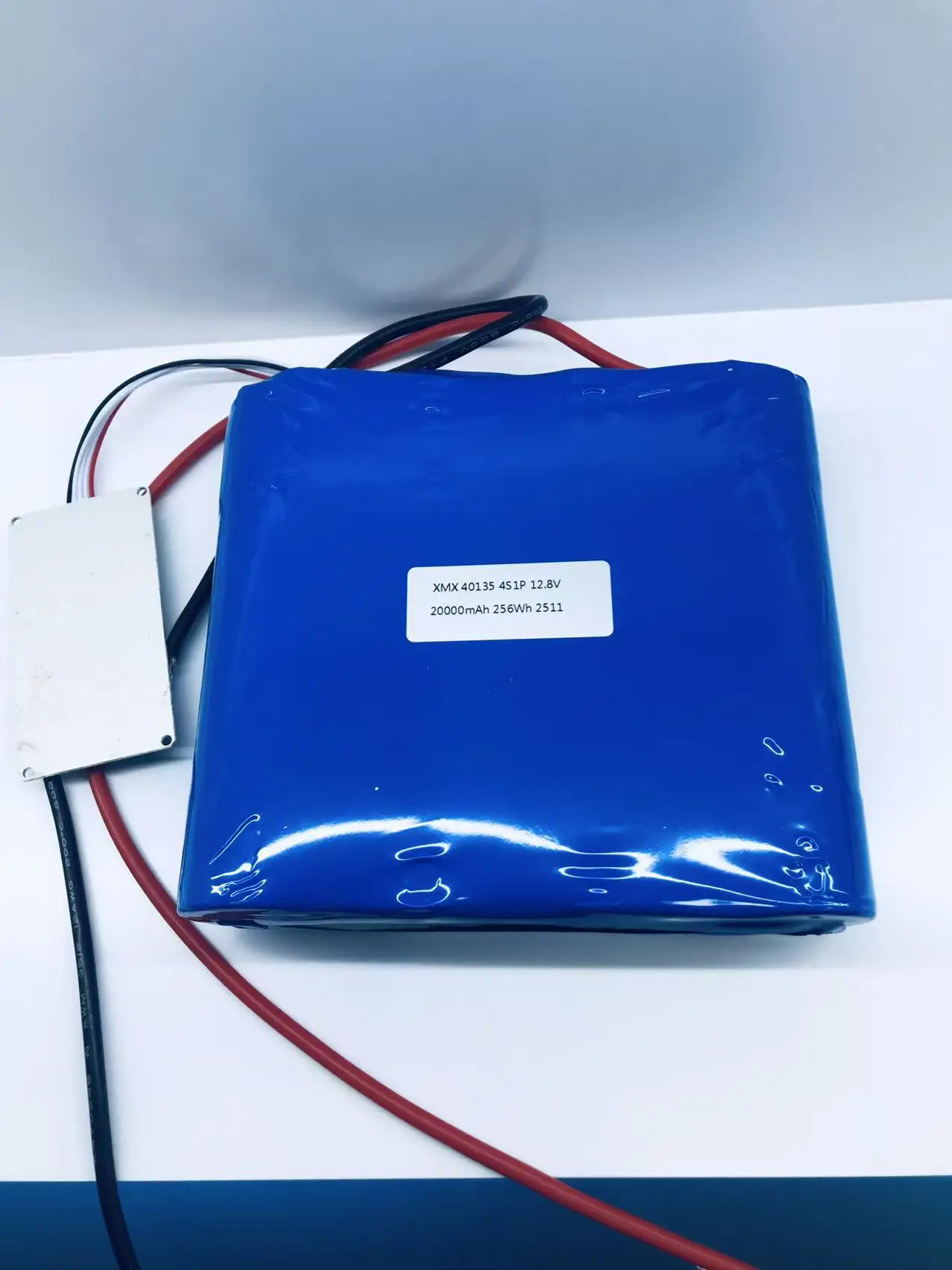

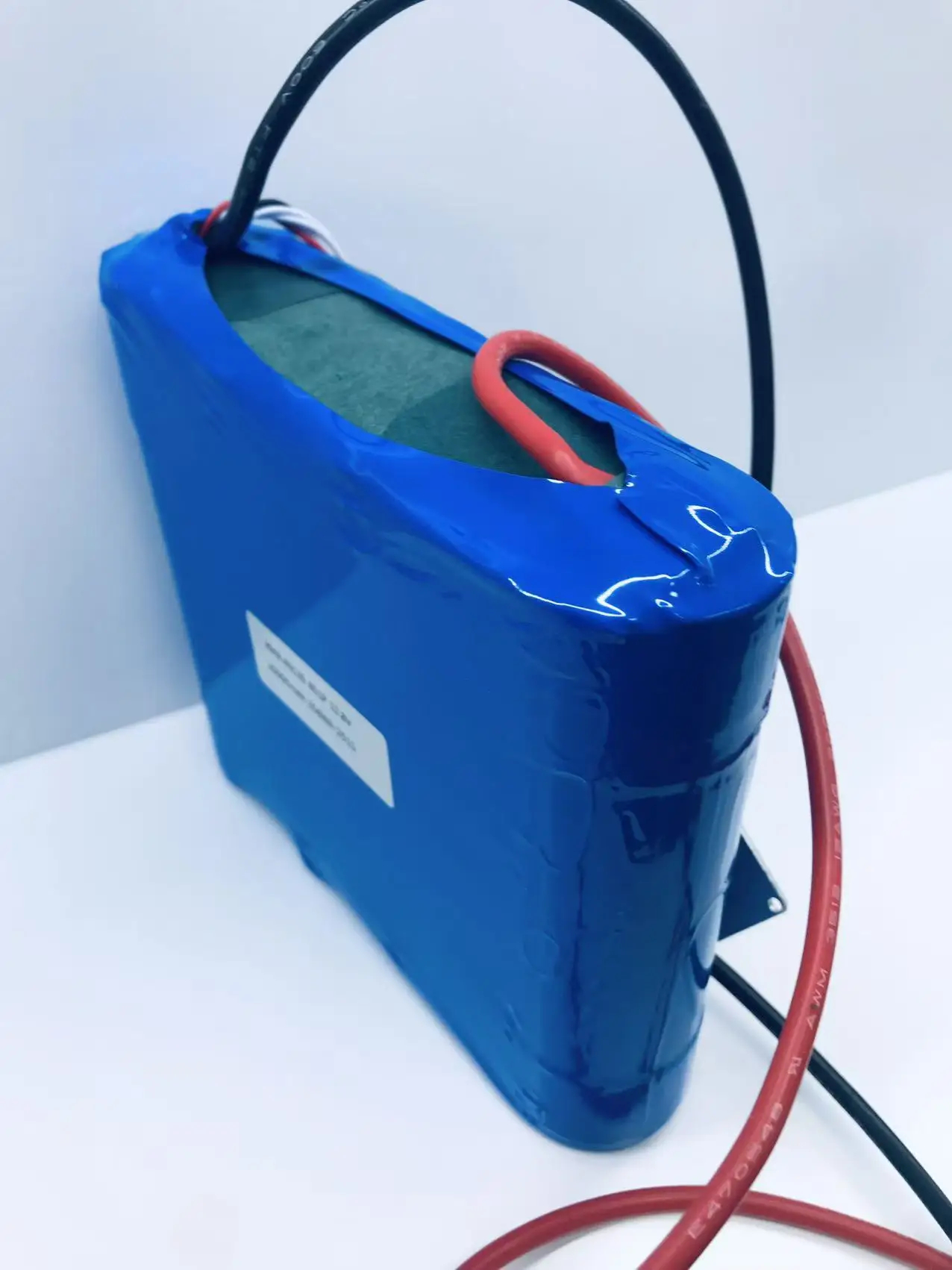

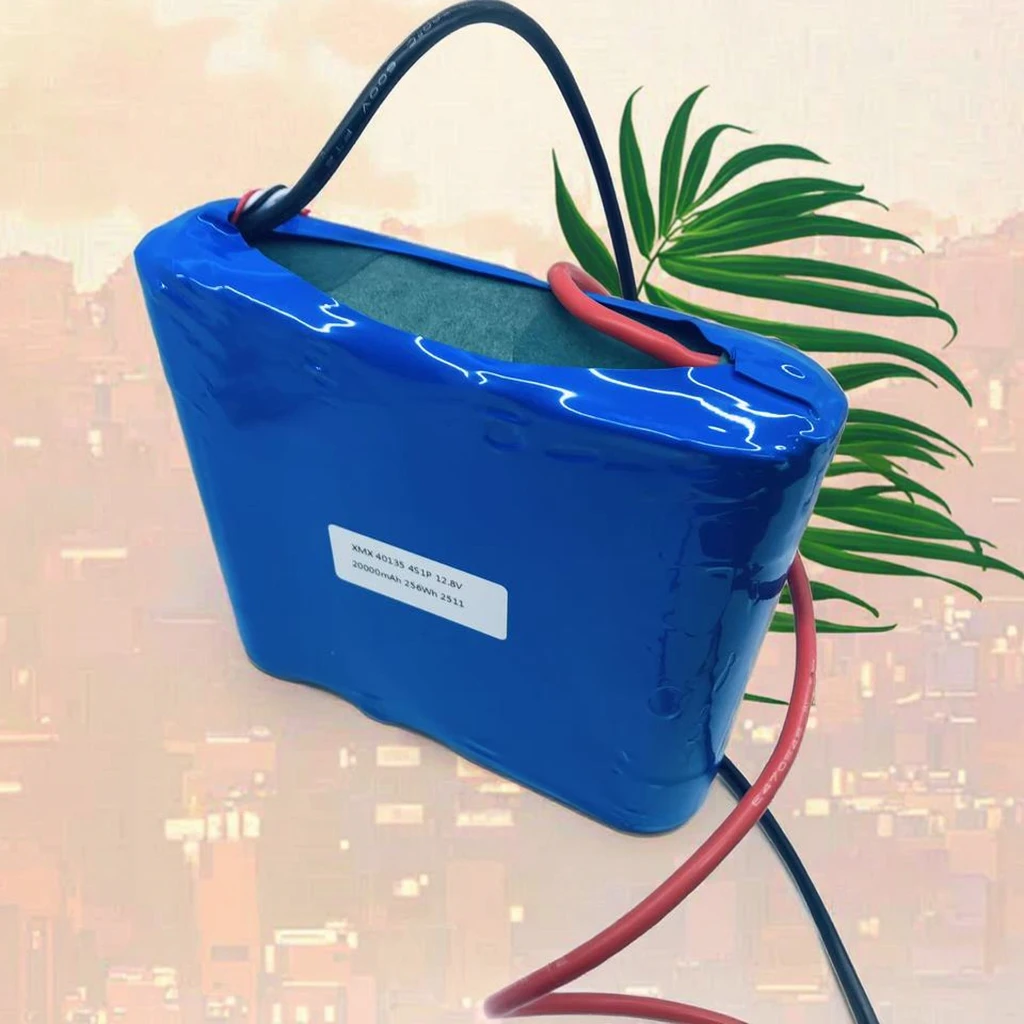

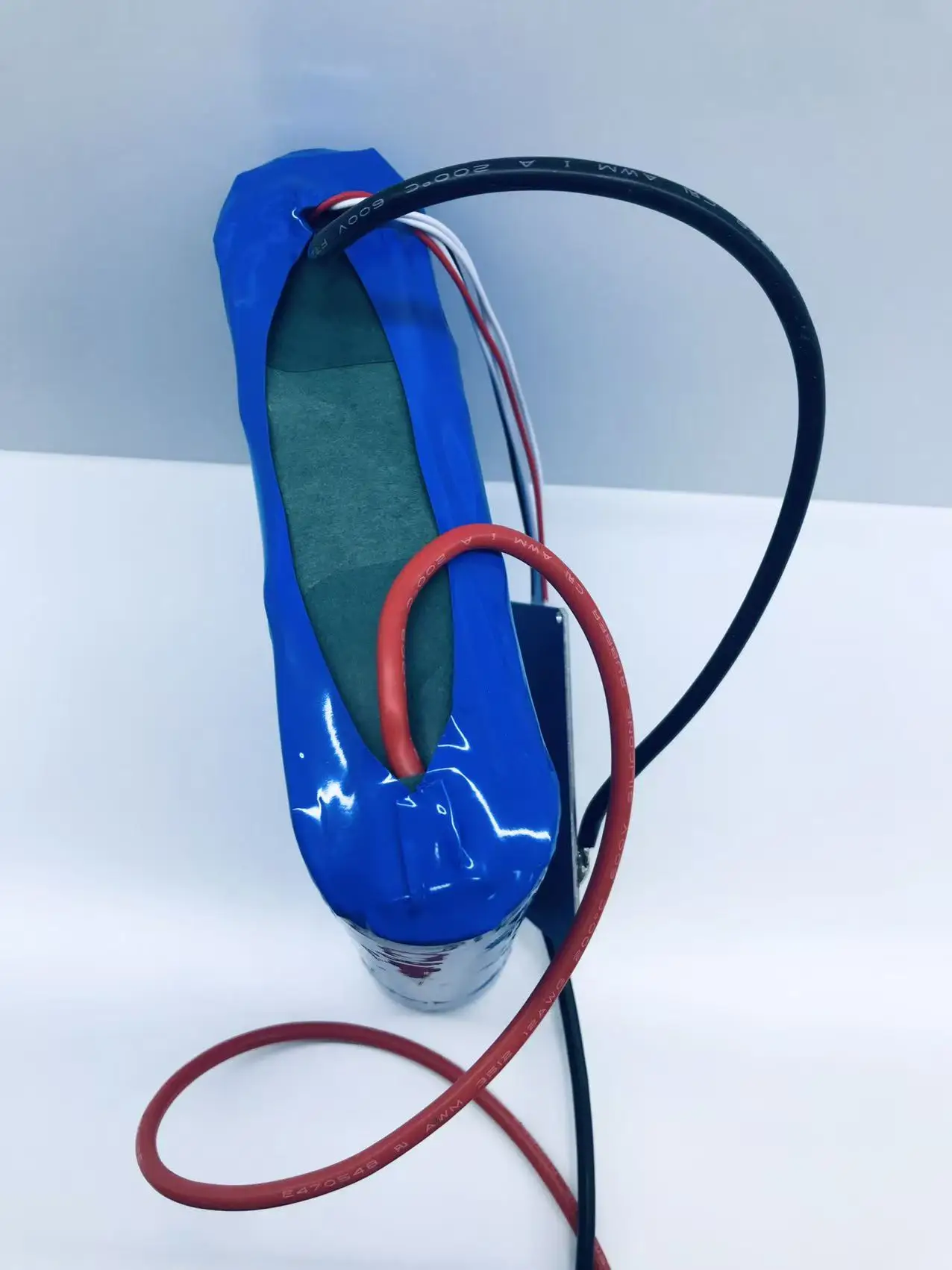

Product detail drawing
产品细节图 +产品细节介绍

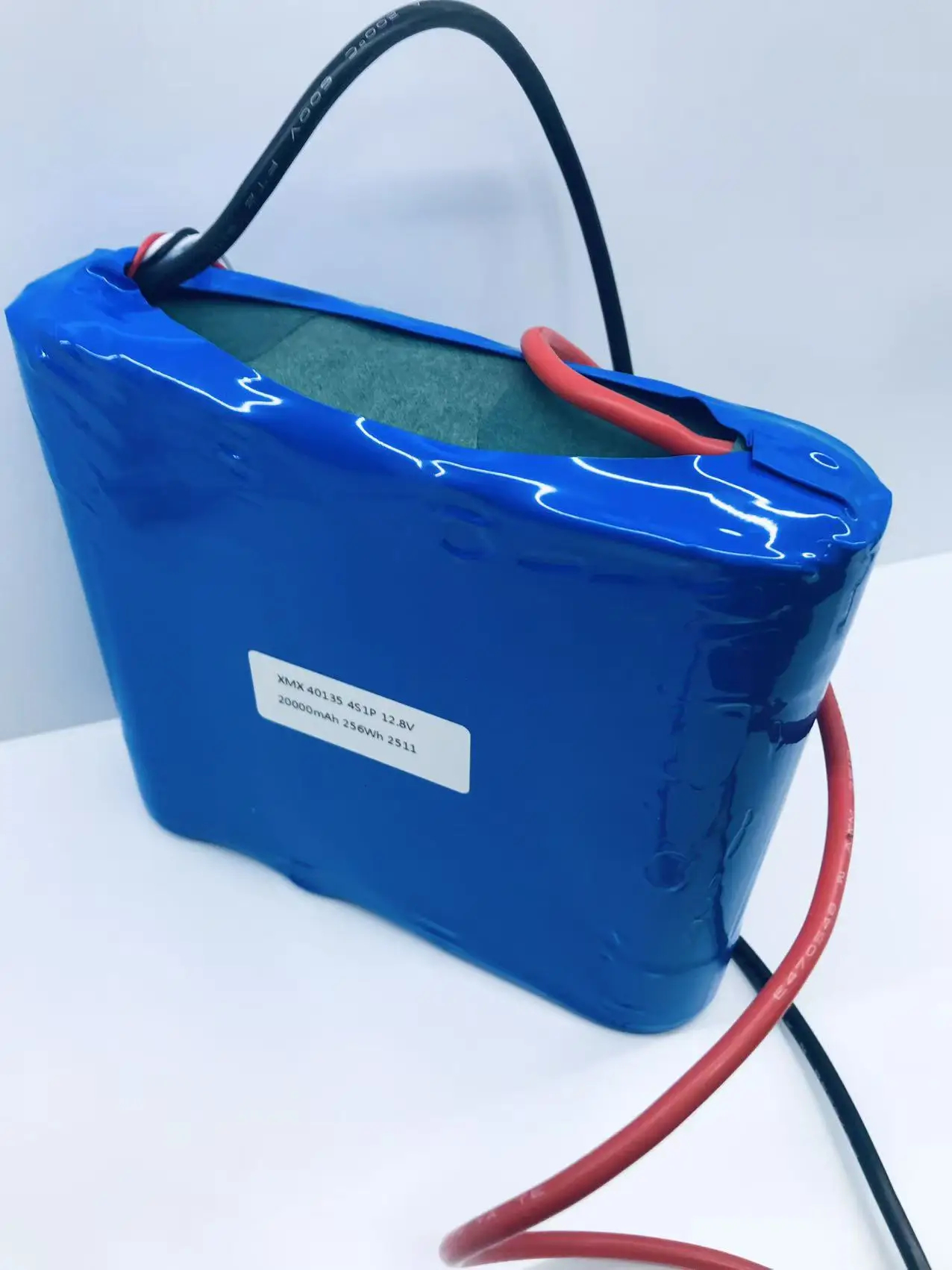

The 12.8V 20Ah LiFePO₄ Battery Pack 4S1P uses premium 40135 cylindrical LiFePO₄ cells to deliver long-lasting, safe, and stable
power.
It is an ideal replacement for lead-acid batteries in solar systems, UPS, LED lighting, portable power stations, and outdoor
devices.
power.
It is an ideal replacement for lead-acid batteries in solar systems, UPS, LED lighting, portable power stations, and outdoor
devices.
Compared with traditional lithium-ion batteries, LiFePO₄ cells feature better safety, longer lifespan, and wider working
temperature range.

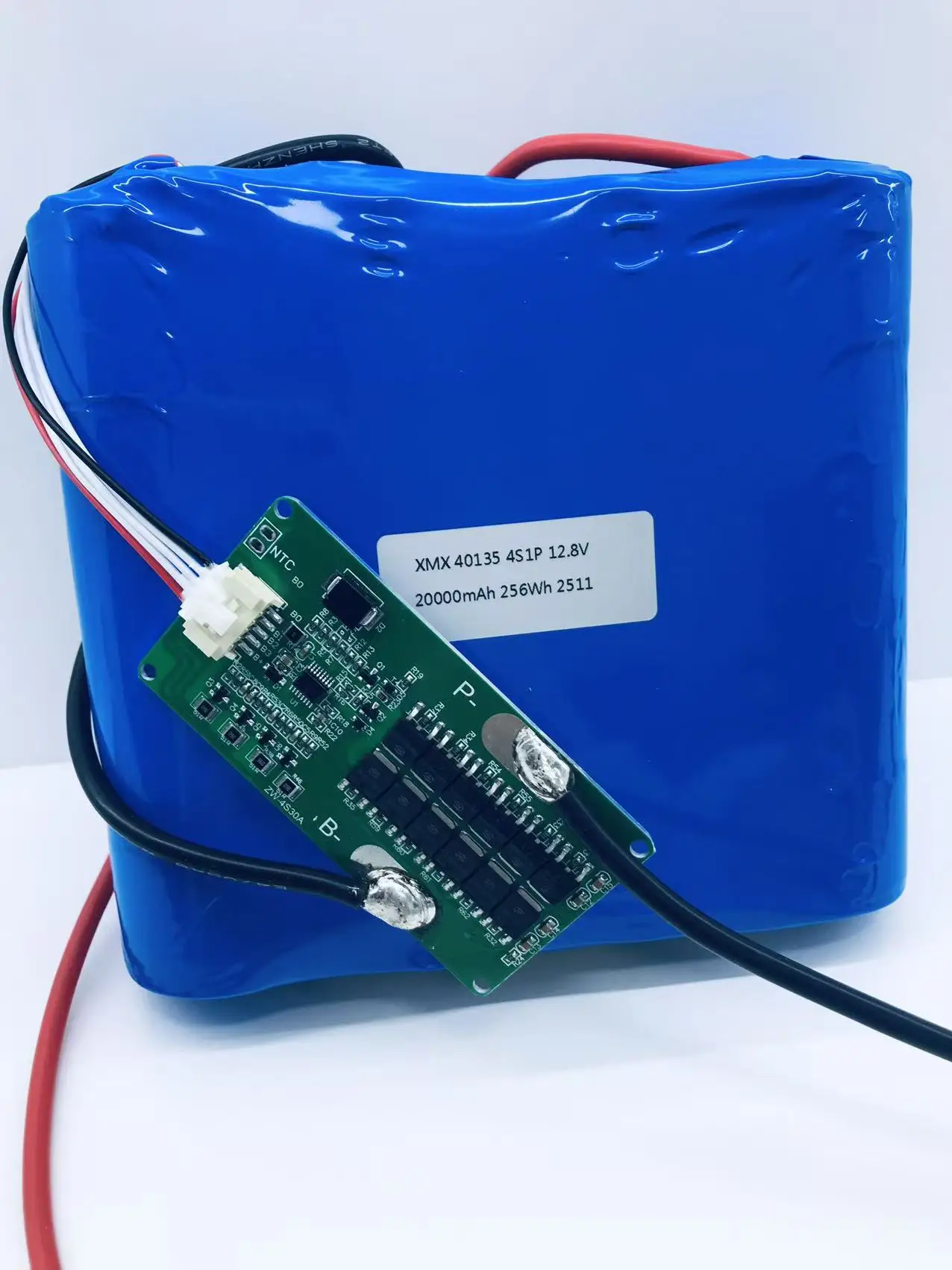

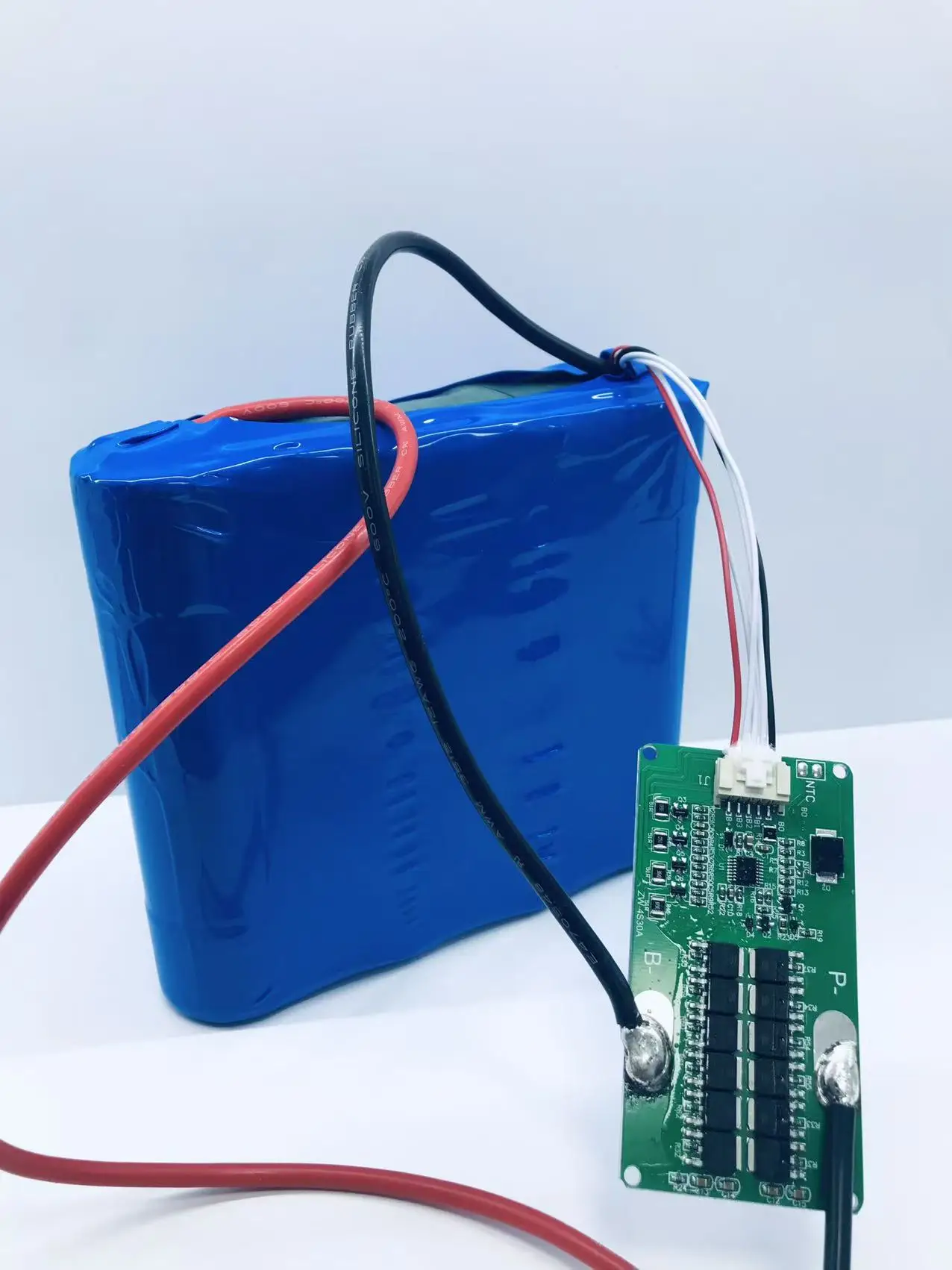

This pack integrates a smart BMS for comprehensive protection and can be customized with different connectors, cases, and
communication options CAN / RS485.
temperature range.
This pack integrates a smart BMS for comprehensive protection and can be customized with different connectors, cases, and
communication options CAN / RS485.
Each battery undergoes strict quality testing and includes UN38.3 / MSDS / CE / RoHS certifications for international shipping.
Introduction of product advantages or application effect or application mode
产品优点or使用效果or使用方式的介绍说明
Application :
* Solar Energy Storage: Ideal for off-grid solar power systems, ensuring reliable energy storage for residential or industrial use.
* Electric Vehicles : Perfect for powering electric vehicles such as e-bikes, electric scooters, golf carts, and other electric transportation systems
* Uninterruptible Power Supply UPS: Provides backup power for critical loads such as servers, home electronics, and medical
devices during power outages
* RVs & Marine: Great for use in RVs, campers, boats, and other off-grid applications, providing power for lights, appliances,and electronics.
* Off-Grid Power Solutions: Provides reliable, long-lasting power in areas without access to the electrical grid, ideal for
remote locations, cabins, or emergency power supply.
The LFP 40135 4S1P 12.8V 20Ah Battery Pack is a high-performance LiFePO4 Lithium Iron Phosphate battery designed for various
energy storage applications. With a nominal voltage of 12.8V and a capacity of 20Ah, this battery is ideal for use in solar energy
storage systems, electric vehicles EVs, uninterruptible power supplies UPS, and off-grid power solutions.
Built with LiFePO4 technology, this battery offers superior safety, long cycle life, and thermal stability, making it a reliable
choice for both commercial and residential applications. The 4S1P configuration 4 cells in series, 1 in parallel ensures optimal
performance, while its compact design and high capacity allow it to meet the demanding needs of renewable energy systems, electric
transportation, and backup power.
energy storage applications. With a nominal voltage of 12.8V and a capacity of 20Ah, this battery is ideal for use in solar energy
storage systems, electric vehicles EVs, uninterruptible power supplies UPS, and off-grid power solutions.
Built with LiFePO4 technology, this battery offers superior safety, long cycle life, and thermal stability, making it a reliable
choice for both commercial and residential applications. The 4S1P configuration 4 cells in series, 1 in parallel ensures optimal
performance, while its compact design and high capacity allow it to meet the demanding needs of renewable energy systems, electric
transportation, and backup power.
battery solution for your selection
The 12.8V 20Ah LiFePO₄ Battery Pack 4S1P uses premium 40135 cylindrical LiFePO₄ cells to deliver long-lasting, safe, and stable
power.
It is an ideal replacement for lead-acid batteries in solar systems, UPS, LED lighting, portable power stations, and outdoor
devices.
Compared with traditional lithium-ion batteries, LiFePO₄ cells feature better safety, longer lifespan, and wider working
temperature range.
This pack integrates a smart BMS for comprehensive protection and can be customized with different connectors, cases, and
communication options CAN / RS485.
Each battery undergoes strict quality testing and includes UN38.3 / MSDS / CE / RoHS certifications for international shipping.
power.
It is an ideal replacement for lead-acid batteries in solar systems, UPS, LED lighting, portable power stations, and outdoor
devices.
Compared with traditional lithium-ion batteries, LiFePO₄ cells feature better safety, longer lifespan, and wider working
temperature range.
This pack integrates a smart BMS for comprehensive protection and can be customized with different connectors, cases, and
communication options CAN / RS485.
Each battery undergoes strict quality testing and includes UN38.3 / MSDS / CE / RoHS certifications for international shipping.

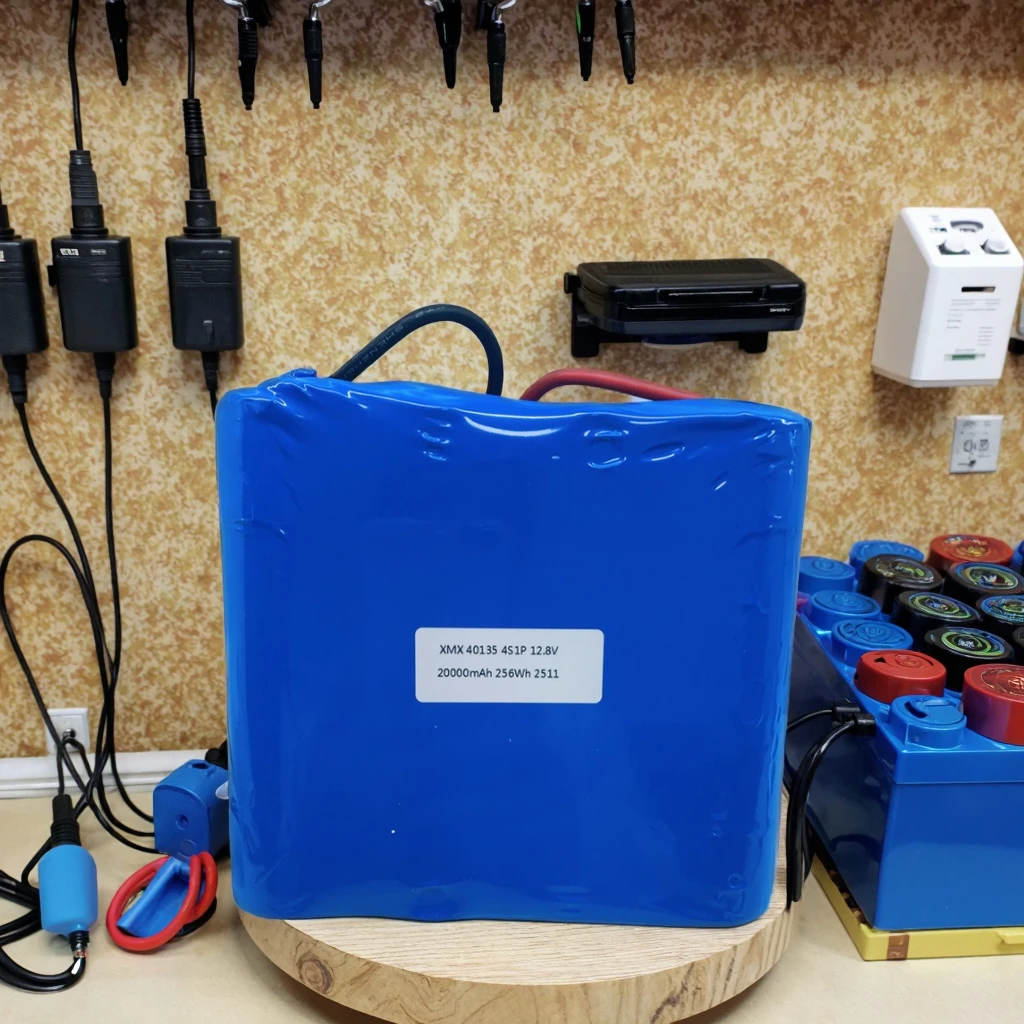

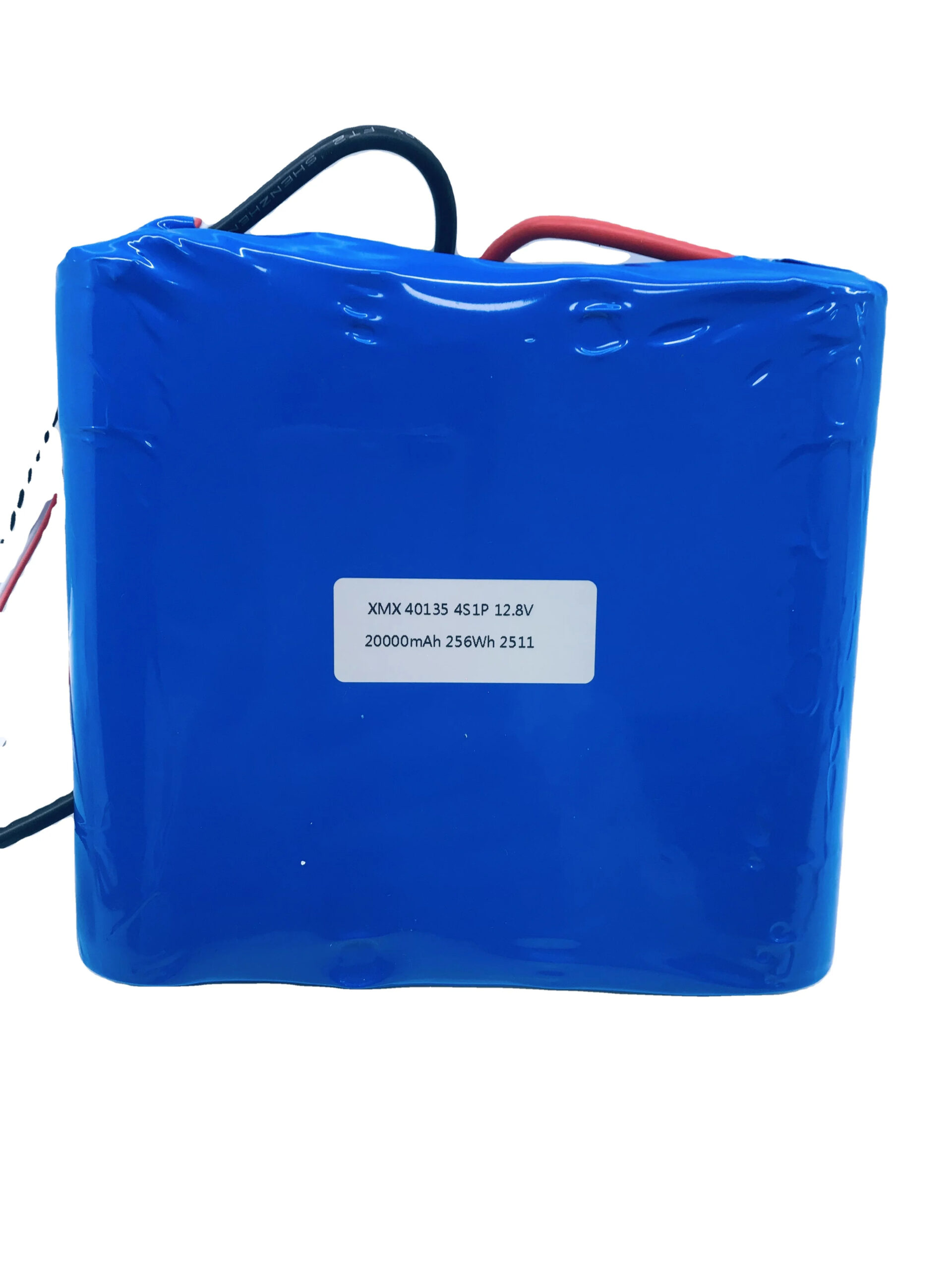

Product Presentation
-
